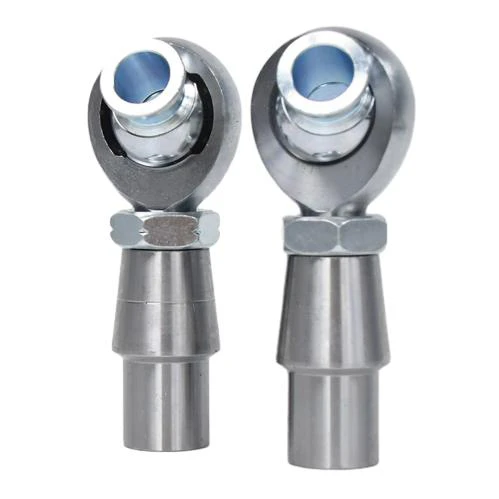

    Chromoly Panhard Bar Kit Heim Joints 3/4 x 3/4-16 with 3/4-5/8 HMS Bung .120

    97.98 48.99
    50% Off

    Unit Type : Heim Joint

    Material : Chromoly

    Bung Size : 1" 1/4 OD. x .120" Wall x 1.01" ID.

    Thread Size : 3/4"-16

    Bore Size: 3/4" (0.750")

    Description

    • Heim Joints Size: Thread Size: 3/4"-16, Ball Bore: .750", Ball Width: .875", Centerline Length: 2.875",Thread Length: 1.750", jam nut included.
    • High Quality Material: The carbon steel rod end body and jam nut ensures long service life.
    • Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
    • High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
    • Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

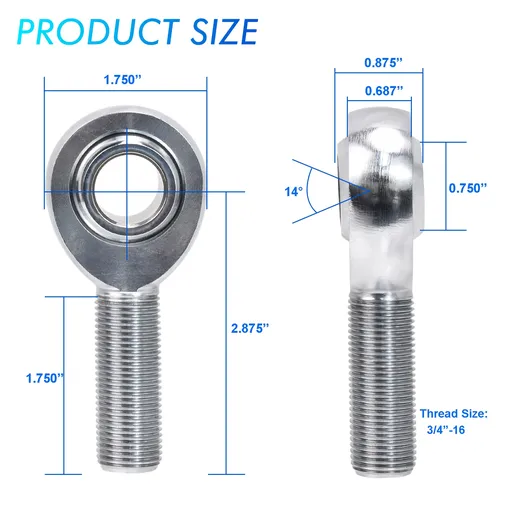

    Rod End (XML12 & XMR12)

    • Material: Right Hand, Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
    • Qty: One RH & One LH
    • Thread Size: 3/4"-16
    • Ball Bore: .750"
    • Ball Width: .875"
    • Centerline Length: 2.875"
    • Thread Length: 1.750"
    • Load Capacity: 28,081 lbs

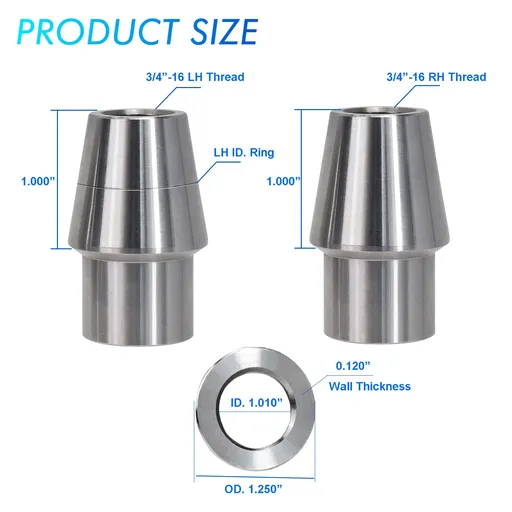

    3/4 Bung (WTF-1204L &WTF1204R)

    • Material: Chromoly
    • Qty: One RH & One LH
    • Thread Size: 3/4"-16
    • Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

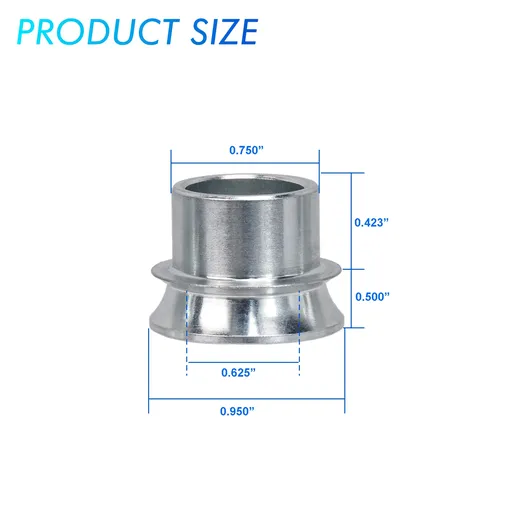

    High Misalignment Spacer Specs (HMS12-108)

    • Material: Zinc Plated Carbon Steel
    • Insert Dia: .75
    • Inside Bore: .625
    • Outside Boss Dia: .825
    • Overall Length In Ball: 1.875
    • Approximate Degrees: 52

    Jam Nut(JNL10S & JNR10S)

    • Material: Carbon Steel, Silver Zinc Plated
    • Qty: One RH & One LH
    • Thread: 3/4"-16
    • Width: 1 1/8" (1.125")
    • Height: 27/64"

    Package Includes

    • 1 x RH 3/4"-16 Jam Nut
    • 1 x LH 3/4"-16 Jam Nut
    • 1 x RH 3/4"-16 Thread, 3/4" Bore
    • 1 x LH 3/4"-16 Thread, 3/4" Bore
    • 1 x RH Tube Adapter
    • 1 x LH Tube Adapter
    • 4 x High Misalignment Spacer
