    Chromoly Panhard Bar Kit Heim Joint 5/8 x 5/8-18 with 5/8-1/2 HMS & Bung 0.060

    83.98 41.99
    50% Off

    Unit Type : Heim Joint

    Material : Chromoly

    Bung Size : 0.745" OD. x 0.06" Wall x 0.625" ID.

    Thread Size : 5/8"-18

    Description

    • Heim Joints Size: Thread Size: 5/8"-18, Ball Bore: .625", Ball Width: .750",Centerline Length: 2.625", Thread Length: 1.625" jam nut included.
    • High Quality Material: The carbon steel rod end body and jam nut ensures long service life.
    • Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
    • High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
    • Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

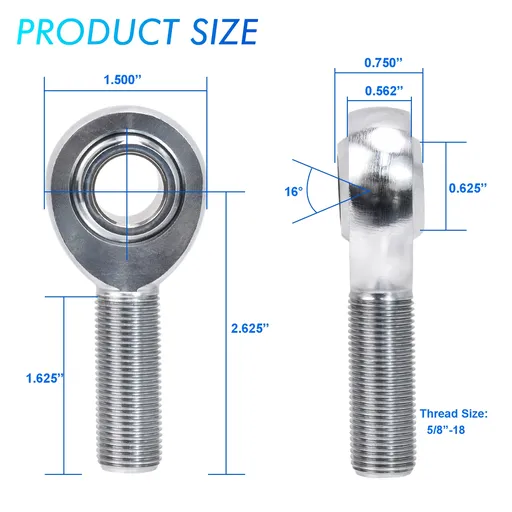

    Rod End (XML10 & XMR10)

    • Material: Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
    • Thread Size: 5/8"-18
    • Ball Bore: .625"
    • Ball Width: .750"
    • Centerline Length: 2.625"
    • Thread Length: 1.625"
    • Load Capacity: 17,995lbs

    Bung

    • Material: 1045 Steel
    • Thread Size: 5/8" -18
    • Bung Size: 0.745" OD. x 0.06" Wall x 0.625" ID.

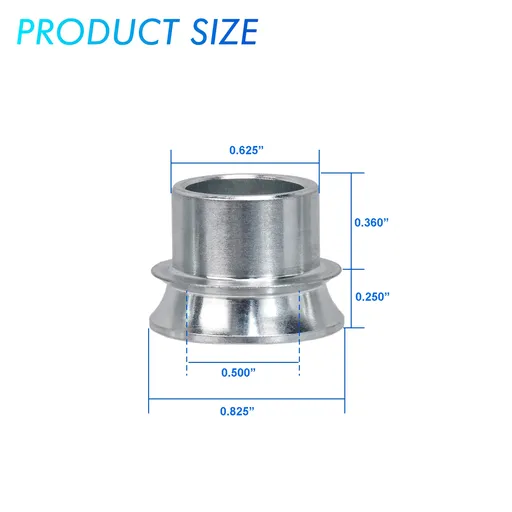

    High Misalignment Spacer Specs (HMS10-84)

    • Material: Zinc Plated Carbon Steel
    • Insert Dia: .625
    • Inside Bore: .500
    • Outside Boss Dia: 0.825
    • Overall Length In Ball: 1.250
    • Approximate Degree: 54.

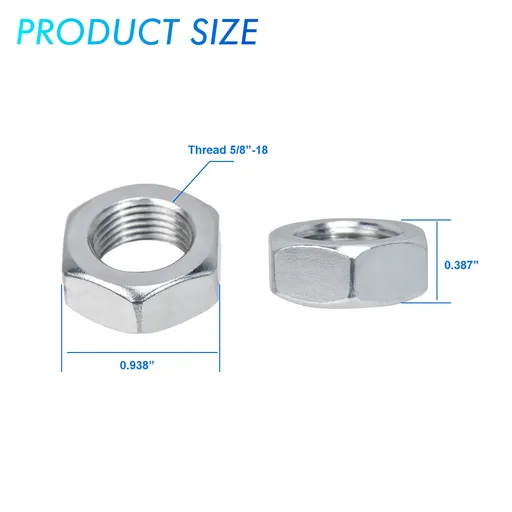

    Jam Nut(JNL10S & JNR10S)

    • Material: Carbon Steel, Silver Zinc Plated
    • Thread: 5/8"-18
    • Width: Max 0.938"-Min 0.922"
    • Height: Max 0.387"-Min 0.363"

    Package Includes

    • 1 x LH Thread Rod End
    • 1 x RH Thread Rod End
    • 1 x LH Bung
    • 1 x RH Bung
    • 1 x LH Jam Nut
    • 1 x RH Jam Nut
    • 4 x High Misalignment Spacer
