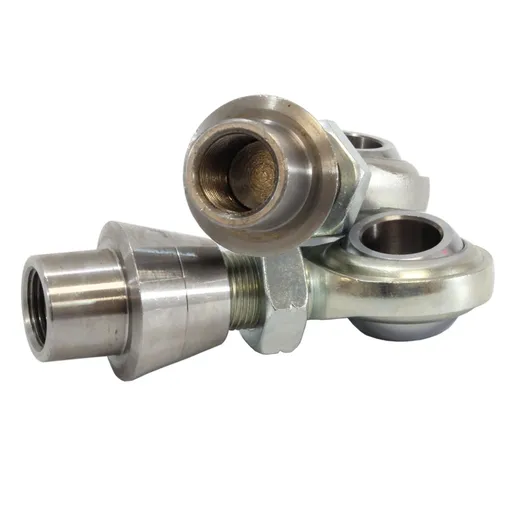

    Economy Panhard Bar Rod End 3/4" x 3/4"-16 Heim Joint Bungs .250" Wall

    63.98 31.99
    50% Off

    Unit Type : Heim Joint

    Material : Carbon Steel

    Bung Size : 1" 1/2 OD. x .250" Wall x 1" ID

    Bore Size: 3/4" (0.750")

    Thread Size : 3/4"-16

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (CML12 & CMR12)

    • Material:Carbon Steel,Silver Zinc Plated
    • Qty: One RH & One LH
    • Thread Size: 3/4"-16
    • Ball Bore: .750"
    • Ball Width: .875"
    • Centerline Length: 2.875"
    • Thread Length: 1.750"
    • Load Capacity: 15,894 lbs

    3/4 Bung (WIB 3/4-16 LH.250 & WIB 3/4-16 RH.250)

    • Material: Carbon Steel
    • Qty: One RH & One LH
    • Thread Size: 3/4"-16
    • Bung Size: 1" 1/2 OD. x .250" Wall x 1" ID.

    Jam Nut (JNL12S & JNR12S)

    • Material: Carbon Steel,Zinc Plated
    • Qty: One RH & One LH
    • Thread: 3/4"-16
    • Width: 1 1/8" (1.125")
    • Height: 27/64"(0.422")

    Package Includes

    • 1 x RH 3/4"-16 Jam Nut
    • 1 x LH 3/4"-16 Jam Nut
    • 1 x RH 3/4"-16 Thread, 3/4" Bore
    • 1 x LH 3/4"-16 Thread, 3/4" Bore
    • 1 x RH Weld-In Bung
    • 1 x LH Weld-In Bung
