Replacing the starter on a 2002-2009 Toyota Camry is a common repair once the vehicle reaches higher mileage. With basic tools and some patience, this replace starter job can be done at home and save you hundreds of dollars in labor costs. This guide covers step-by-step instructions, common mistakes, and tips to ensure a smooth replacement.
When To Replace A Starter?
Common signs of a failing starter include:
-Clicking sound when turning the key
-Intermittent starting issues
-Engine won’t crank, but battery is good
-Grinding or whining noise during startup
-Starter works only after multiple attempts
If your Camry has 2.4L, 3.0L, 3.3L, or 3.5L engines (2002-2009), the replacement process is very similar.
Tools & Parts You’ll Need
Tools:
-Socket set (10mm, 12mm, 14mm)
-Ratchet & extensions
-Torque wrench (recommended)
-Jack and jack stands
-Safety gloves & glasses
Parts:
Replacement starter (compatible with 2002-2009 Toyota Camry). Our 17825 Starter is designed for 2.4L / 3.0L / 3.3L / 3.5L Camry models.
Step-by-Step: How to Replace the Starter
Step 1: Disconnect the Battery
Always start by disconnecting the negative battery terminal to prevent electrical shorts or injury.
Step 2: Lift the Vehicle
Jack up the front of the car and secure it with jack stands. Most Camry starters are accessed from underneath the vehicle.

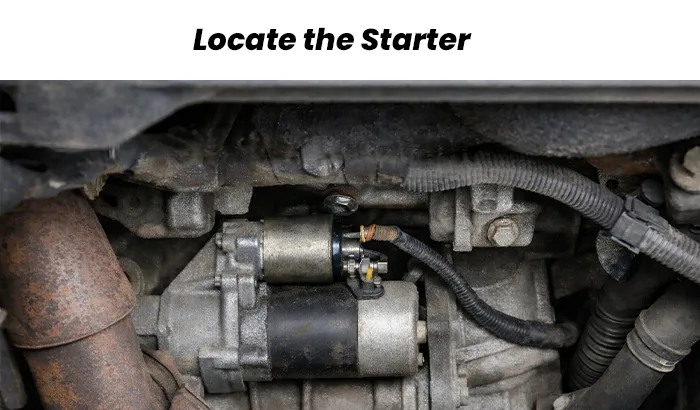

Step 3: Locate the Starter
The starter is mounted near the transmission bell housing, close to the engine block.
Step 4: Disconnect Electrical Connections
Remove the main power cable (usually a 12mm nut)
Disconnect the smaller signal wire
Keep hardware organized for reinstallation
Step 5: Remove Starter Mounting Bolts
Typically 2 mounting bolts
Support the starter with one hand while removing the last bolt

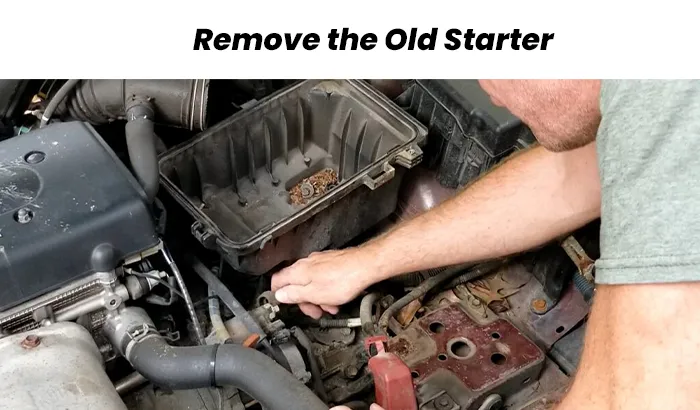

Step 6: Remove the Old Starter
Carefully slide the starter out. Some models may require slight repositioning to clear surrounding components.
Step 7: Install the New Starter
Position the new starter
Hand-tighten mounting bolts first
Torque bolts to manufacturer specifications
Step 8: Reconnect Wires
Reattach electrical connections securely
Ensure terminals are clean and tight
Step 9: Lower Vehicle & Reconnect Battery
Reconnect the battery terminal and lower the vehicle safely.
Step 10: Test the Starter
Start the engine to check whether smooth crank, no abnormal noises and Immediate ignition, if your answer is yes, the whole replace starter job is complete.
How Long Does It Take?
DIY: 1–2 hours
Repair shop: 1–1.5 hours labor
Doing it yourself can save $200–$400 in labor costs.
Common Mistakes to Avoid
Forgetting to disconnect the battery
Using an incompatible starter
Not tightening mounting bolts properly
Leaving loose electrical connections
Final Tips
If your Camry has over 100,000 miles, starter failure is normal wear
Always check battery and alternator before replacing the starter
Choosing a high-quality aftermarket starter offers excellent reliability at a lower cost than OEM.

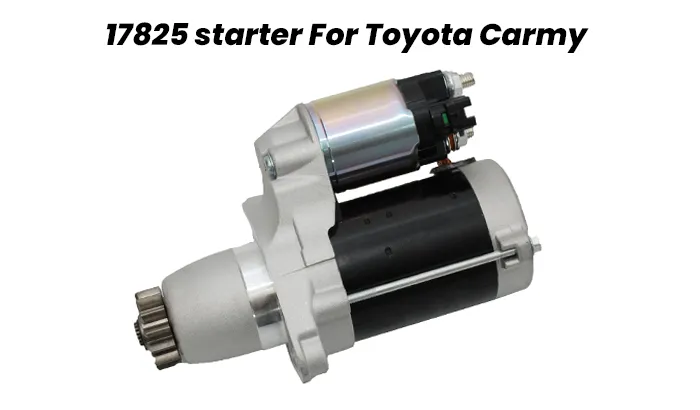

Compatible Starter for 2002–2009 Toyota Camry
If you’re looking for a reliable starter replacement:
✔ Fits 2.4L / 3.0L / 3.3L / 3.5L engines
✔ Direct bolt-on installation
✔ Tested for durability and performance
✔ Excellent value vs OEM pricing
Starter 17825 is one of our best-selling solutions for Camry owners.
