    4x Heim Joints Rod Ends 7/8 x 7/8-14 with 7/8-5/8 HMS & Bung .120 Wall XMR14 & XML14

    457.98 228.99
    50% Off

    Unit Type : Heim Joint

    Material : Chromoly

    Bung Size : 1 1/2" OD x 0.120" Wall x 1.26" ID

    Thread Size : 7/8"-14

    Bore Size: 7/8" (0.875" )

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (XML14 & XMR14

    • Material: Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
  • Thread Size: 7/8"-14
  • Ball Bore: .875"
  • Ball Width: .875"
  • Centerline Length: 3.375"
  • Thread Length: 2"
  • Load Capacity: 45,051lbs

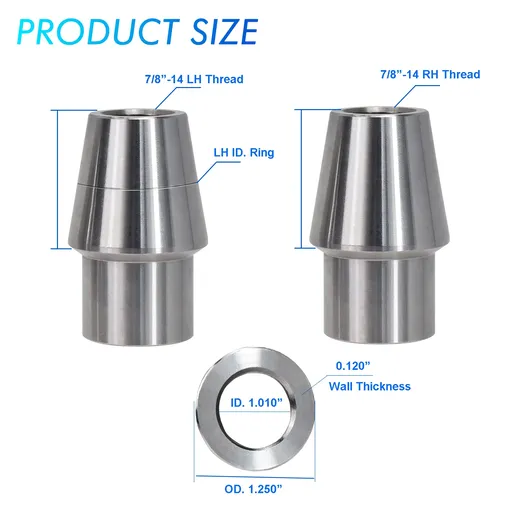

    Bung (WTF-1401L & WTF-1401R)

    • Material: Chromoly
    • Thread Size: 7/8"-14
    • Bung Size: 1 1/2" OD x 0.120" Wall x 1.26" ID..

    High Misalignment Spacer Specs (HMS14-1010)

    • Material: Zinc Plated Carbon Steel
    • Insert Dia: .875
    • Inside Bore: .625
    • Outside Boss Dia:1.062
    • Overall Length In Ball: 2.125
    • Approximate Degrees: 44

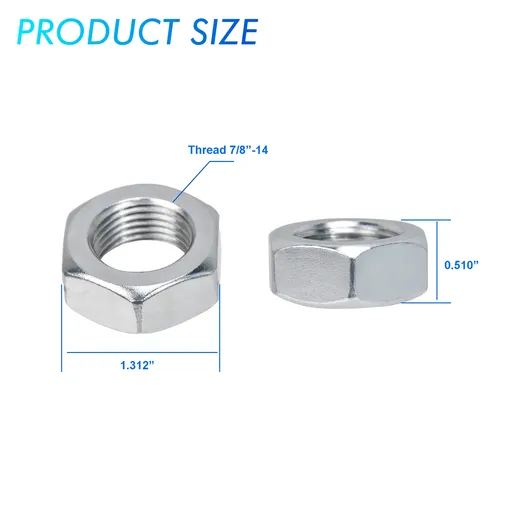

    Jam Nut (JNL14S & JNR14S)

    • Thread: 7/8"-14
    • Width: Max 1.312"-Min 1.269"
    • Height: Max 0.510"-Min 0.458"
    • Carbon Steel, Zinc Plated

    Package Includes

    • 2 x LH Thread Rod End
    • 2 x RH Thread Rod End
    • 2 x LH Jam Nut
    • 2 x RH Jam Nut
    • 2 x LH Tube Adapter
    • 2 x RH Tube Adapter
    • 8 x LH High Misalignment Spacer
    • 8 x RH High Misalignment Spacer
