    4x Economy Panhard Bar Kit Heim Joints 3/4 x 3/4-16 with 3/4-5/8 HMS Bung .120

    317.98 158.99
    50% Off

    Unit Type : Heim Joint

    Quantity: 4 Pairs

    Material : Carbon Steel

    Bung Size : 1" 1/4 OD. x .120" Wall x 1.01" ID

    HMS : 3/4-5/8

    Thread Size : 3/4"-16

    Description

    • Heim Joints Size: Thread Size: 3/4"-16, Ball Bore: .750", Ball Width: .875", Centerline Length: 2.875", Thread Length: 1.750", jam nut included.
    • High Quality Material: The carbon steel rod end body and jam nut ensures long service life.
    • Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
    • High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
    • Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck..

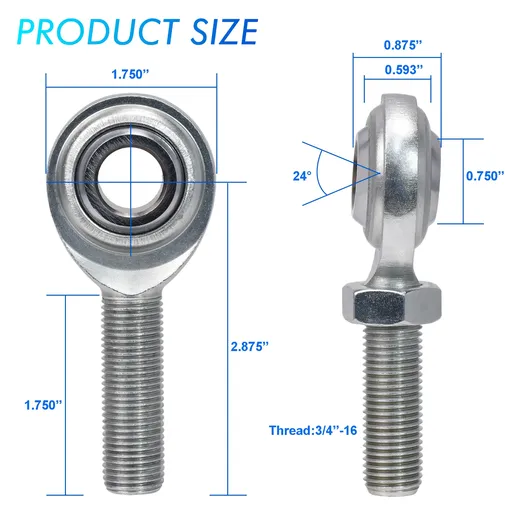

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (CML12 & CMR12)

    • Material: Economy Carbon Steel
    • Qty: One RH & One LH
    • Thread Size: 3/4"-16
    • Ball Bore: .750"
    • Ball Width: .875"
    • Centerline Length: 2.875"
    • Thread Length: 1.750"
    • Load Capacity: 15,894lbs

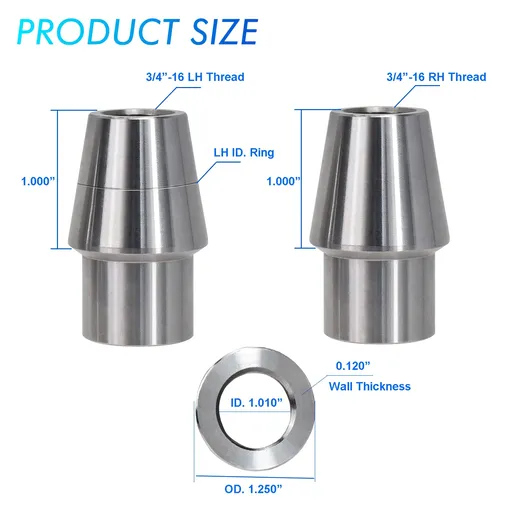

    Bung(WTF-1204L &WTF1204R)

    • Material: 1045 Steel
    • Qty: One RH & One LH
    • Thread Size: 3/4"-16
    • Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

    High Misalignment Spacer Specs

    • Material: 1045 Steel
    • Insert Dia: .750
    • Inside Bore: .625
    • Outside Boss Dia: .950
    • Overall Length In Ball: 1.875
    • Approximate Degrees: 52

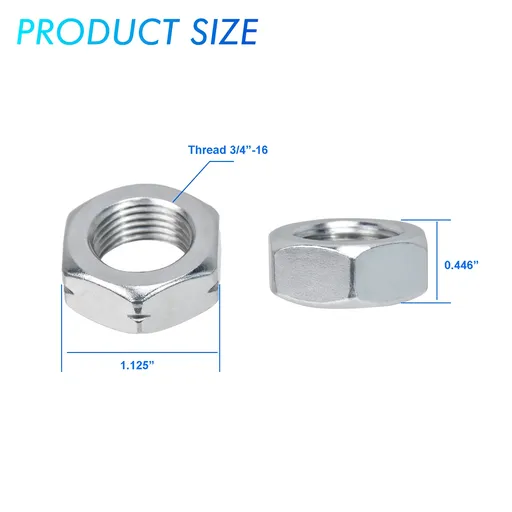

    Jam Nut (JNL12S & JNR12S)

    • Qty: One RH & One LH
    • Thread: 3/4"-16
    • Width: 1 1/8" (1.125")
    • Height: 27/64"
    • Zinc Plated

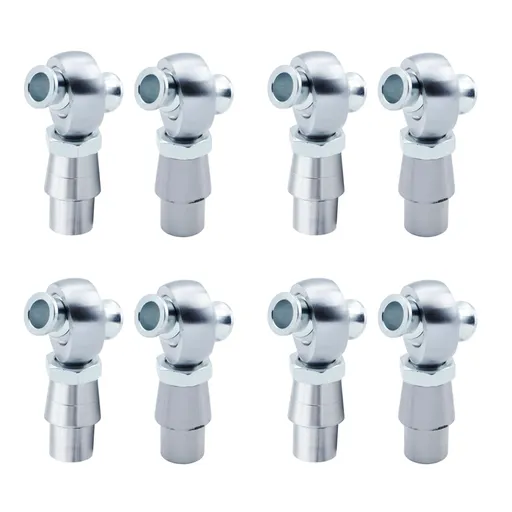

    Package Includes

    • 4 x RH 3/4"-16 Jam Nut
    • 4 x LH 3/4"-16 Jam Nut
    • 4 x RH 3/4"-16 Thread, 3/4" Bore
    • 4 x LH 3/4"-16 Thread, 3/4" Bore
    • 4 x RH Tube Adapter
    • 4 x LH Tube Adapter
    • 8 x RH 3/4"x5/8 High Misalignment Spacer
    • 8 x LH 3/4"x5/8 High Misalignment Spacer
