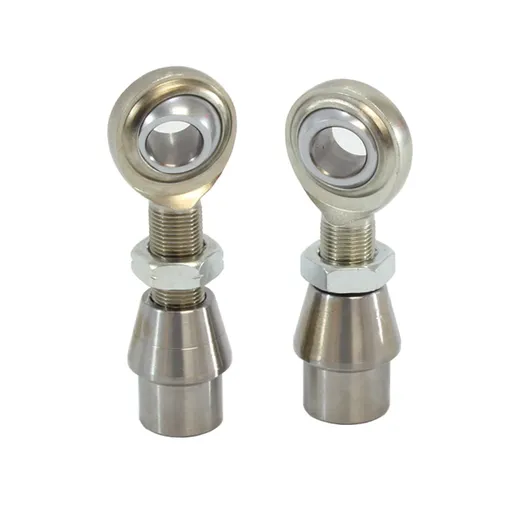

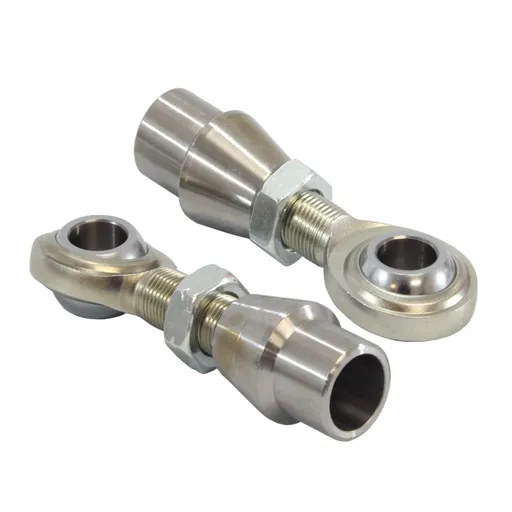

    Economy Panhard Bar Rod End 5/8" x 5/8"-18 Heim Joint Bungs .120" Wall

    63.98 31.99
    50% Off

    Unit Type : Heim Joint

    Material : Carbon Steel

    Bung Size : 1" 1/4 OD. x .120" Wall x 1.01" ID

    Bore Size: 5/8" (0.625")

    Thread Size : 5/8"-18

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

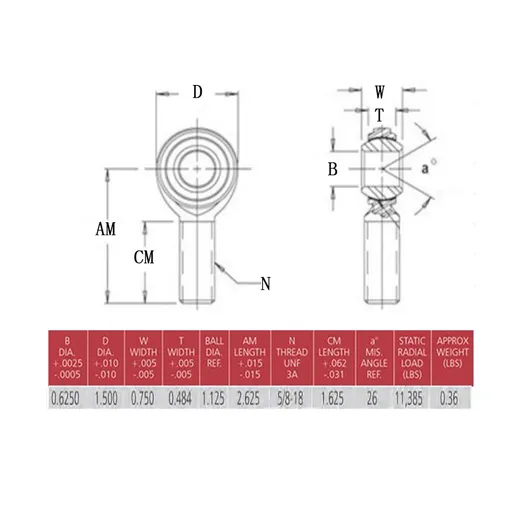

    Rod End (CML10 & CMR10)

    • Material:Carbon Steel,Silver Zinc Plated
    • Qty: One RH & One LH
    • Thread Size: 5/8"-18
    • Ball Bore: .625"
    • Ball Width: .750"
    • Centerline Length: 2.625"
    • Thread Length: 1.625"
    • Load Capacity: 11,385 lbs

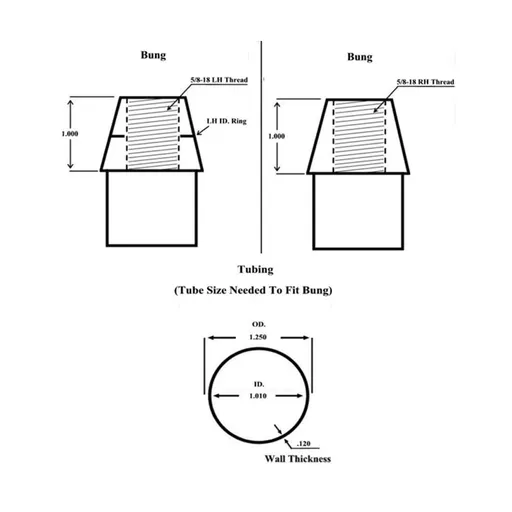

    5/8 Bung (WTF-1010L & WTF-1010R)

    • Material: Carbon Steel
    • Qty: One RH & One LH
    • Thread Size: 5/8"-18
    • Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

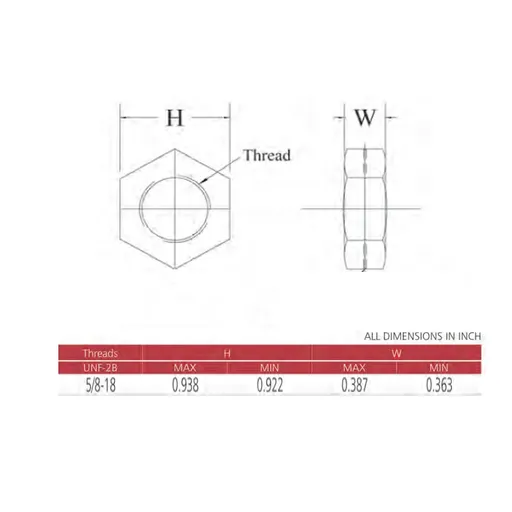

    Jam Nut(JNL10S & JNR10S)

    • Material:Carbon Steel,Zinc Plated
    • Qty: One RH & One LH
    • Thread: 5/8"-18
    • Width: 15/16" (0.938")
    • Height: 3/8"(0.375")

    Package Includes

    • 1 x RH 5/8"-18 Jam Nut
    • 1 x LH 5/8"-18 Jam Nut
    • 1 x RH 5/8"-18 Thread, 5/8" Bore
    • 1 x LH 5/8"-18 Thread, 5/8" Bore
    • 1 x RH Tube Adapter
    • 1 x LH Tube Adapter
