Economy Panhard Bar Rod End 3/8" x 3/8"-24 Heim Joint Bungs .058" Wall


https://www.hexautoparts.com/web/image/product.template/3932/image_1920?unique=30031b6

19.99 19.990000000000002 USD 39.98

39.98

50% Off

Not Available For Sale

Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS Fast shipping 2-5 Days
    Qty:
    Product Image

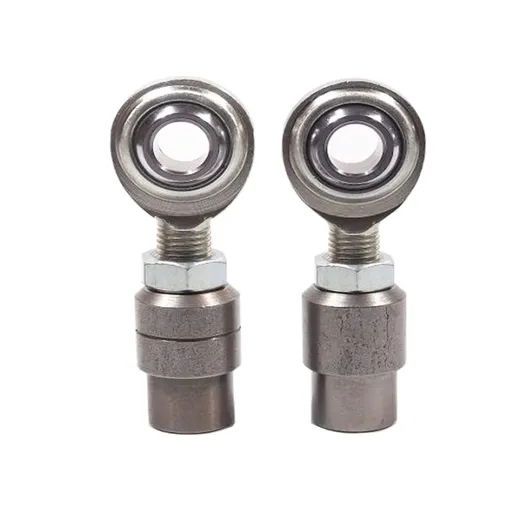

    Economy Panhard Bar Rod End 3/8" x 3/8"-24 Heim Joint Bungs .058" Wall

    39.98 19.99
    50% Off

    Unit Type : Heim Joint

    Material : Carbon Steel

    Bung Size : 3/4" OD. x .058" Wall x 0.634" ID

    Bore Size: 3/8" (0.375")

    Thread Size : 3/8"-24

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

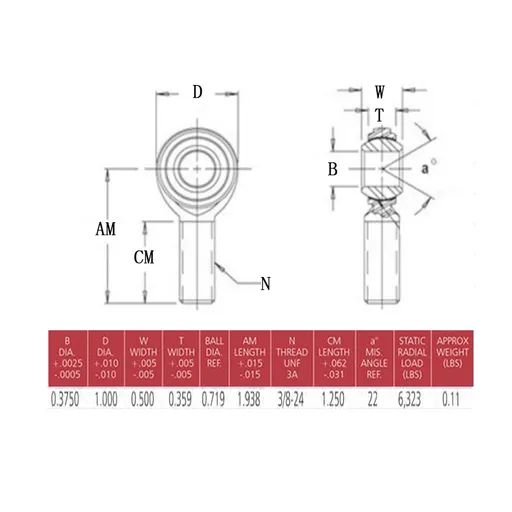

    Rod End (CML6 & CMR6)

    • Material:Carbon Steel,Silver Zinc Plated
    • Qty: Four RH & Four LH
    • Thread Size: 3/8"-24
    • Ball Bore: .375"
    • Ball Width: .7500"
    • Centerline Length: 1.938"
    • Thread Length: 1.250"
    • Load Capacity: 6,323 lbs

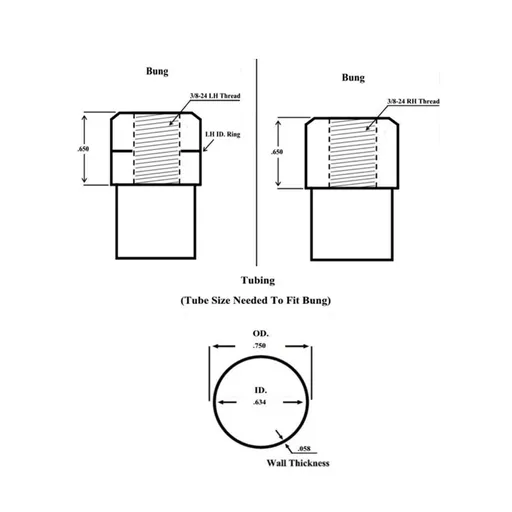

    3/8 Bung (WIB 3/8-24 LH .058 & WIB 3/8-24 RH .058)

    • Material: Carbon Steel
    • Qty: Four RH & Four LH
    • Thread Size: 3/8"-24
    • Bung Size: 3/4" OD. x .058" Wall x 0.634" ID.

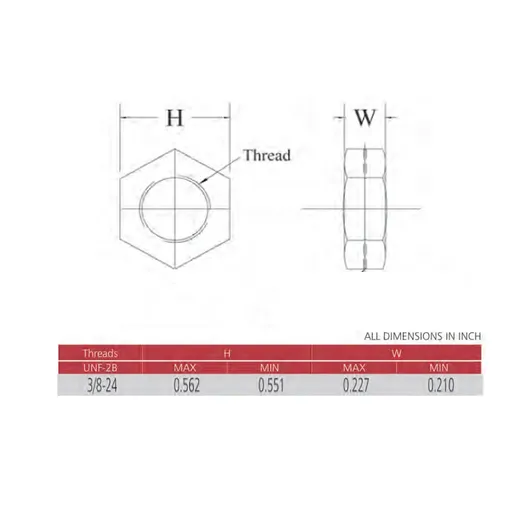

    Jam Nut (JNL6S & JNR6S)

    • Qty: Four RH & Four LH
    • Thread: 3/8"-24
    • Width: 9/16" (0.562")
    • Height: 7/32"(0.219")
    • Carbon Steel,Zinc Plated

    Jam Nut (JNL8S & JNR8S)

    • Material: Carbon Steel,Zinc Plated
    • Qty: Four RH & Four LH
    • Thread: 1/2"-20
    • Width: 3/4" (0.75")
    • Height: 5/16"(0.313")

    Package Includes

    • 1 x RH 3/8"-18 Jam Nut
    • 1 x LH 3/8"-18 Jam Nut
    • 1 x RH 3/8"-18 Thread, 3/8" Bore
    • 1 x LH 3/8"-18 Thread, 3/8" Bore
    • 1 x RH Tube Adapter
    • 1 x LH Tube Adapter
