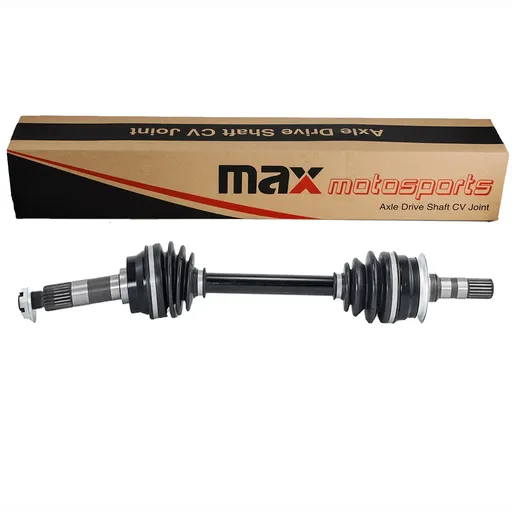

    2001-2007 Kawasaki Mule 2510 3010 4x4 Front Left Right ATV Axle

    84.29 59.00
    30% Off

    Unite Type: CV Joint Axle

    Placement on Vehicle: Front Right or Left

    Quantity: 1 Pc

    Why Choose Maxmotosports ATV Axle

    Maxmotosports ATV Axles,also known as a CV axle shaft or CV joint axle shaft,are brand new and greased to help with reliable performance and durability in extreme conditions.If you notice symptoms of bad axle or hear loud clicking noises when making a turn,it might be time to consider an axle replacement.Whether looking for an ATV front axle or ATV rear axle, trust Hexautoparts. All Maxmotosports ATV Axles are manufactured in strict accordance with OEM specifications, provide Technical Help For ATV/UTV CV Joint Axle Replacement.You can buy them with confidence!


    • High Performance Material:
      Bell Frame: The material of bell frame is CF53, strength and abrasion resistance was improved while intermediate frequency after normalization
      Axle: We use 4340 Chromoly steel which fit to ASTM A29M-2011A,the strength improve more than 30% compared with 40
      Rubber Boot: Using CR material from DU PONT,fitting to ATV/UTV many times testing.
      Oil Grease: We use a moly based grease which can be used in -40 degree and 180 degreee,provide superior joint lubrication.
      Clamp: We use automatic special clamp,the automatic tension machine enure the tension is the same for all the clamps.
    • Easy installation: Our cv axle replacement arrives fully assembled including neoprene cv boot,inboard and outboard universal CV joints for quick installation.
    • Provide Superior Performance: These ATV/UTV axles are brand new and engineered to provide superior performance and exceptional off-road durability,suitable for all levels of riders and terrain.


    2001-2008 Kawasaki 3010 Mule 4x4
    2000-2007 Kawasaki 2510 Mule 4x4
    2009-2014 Kawasaki 4010 Mule 4x4

    Kawasaki Mule Front Axle Specification

    • Outboard CV joint spline count: 24
    • Inboard CV joint spline count: 19
    • Compressed overall axle length: 634mm

    Replace OEM Part Numbers:

    • Kawasaki 59266-0034, 39158-1102
