1998 1999 2000 2001 Polaris Sportsman 500 Front CV Joint Axles Assembly 4x4 2pcs


112.50 112.5 USD 160.71


30% Off

Not Available For Sale


    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time
    Product Image

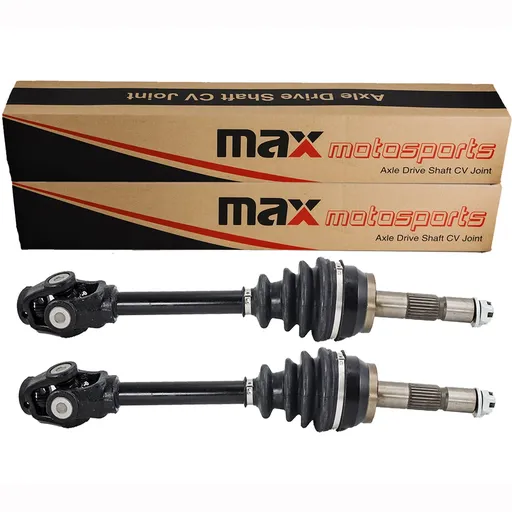

    1998 1999 2000 2001 Polaris Sportsman 500 Front CV Joint Axles Assembly 4x4 2pcs

    160.71 112.50
    30% Off

    Unite Type: CV Joint Axle

    Placement on Vehicle: Front Left or Right

    Quantity: 2 Pcs

    Why Choose Maxmotosports ATV Axle

    Maxmotosports ATV Axles,also known as a CV axle shaft or CV joint axle shaft,are brand new and greased to help with reliable performance and durability in extreme conditions.If you notice symptoms of bad axle or hear loud clicking noises when making a turn,it might be time to consider an axle replacement.Whether looking for an ATV front axle or ATV rear axle, trust Hexautoparts. All Maxmotosports ATV Axles are manufactured in strict accordance with OEM specifications, provide Technical Help For ATV/UTV CV Joint Axle Replacement.You can buy them with confidence!


    • High Performance Material:
      Bell Frame: The material of bell frame is CF53, strength and abrasion resistance was improved while intermediate frequency after normalization
      Axle: We use 4340 Chromoly steel which fit to ASTM A29M-2011A,the strength improve more than 30% compared with 40
      Rubber Boot: Using CR material from DU PONT,fitting to ATV/UTV many times testing.
      Oil Grease: We use  a moly based grease which can be used in -40 degree and 180 degreee,provide superior joint lubrication.
      Clamp: We use automatic special clamp,the automatic tension machine enure the tension is the same for all the clamps.
    • Easy installation: Our cv axle replacement arrives fully assembled including neoprene cv boot,inboard and outboard universal CV joints for quick installation.
    • Provide Superior Performance: These ATV/UTV axles are brand new and engineered to provide superior performance and exceptional off-road durability,suitable for all levels of riders and terrain.


    1996-1999 Xplorer 300 4x4
    2000-2002 Magnum 325 4x4
    2000-2002 Xpedition 325 4x4
    1999-2000 Sportsman 335 4x4
    1999 Worker 335 4x4
    1995-1999 Scrambler 400 4x4
    2001 Sportsman 400 4x4
    1995-1997 Sportsman 400 4x4
    1995-1998 Xplorer 400 4x4
    1995-1997 Big Boss 400L 6x6
    1995-1998 Magnum 425 4x4 6x6
    2000-2001 Xpedition 425 4x4
    1998-2001 Big Boss 500 6x6
    1999-2001 Magnum 500 4x4
    1997-1998 Scrambler 500 4x4
    1998-2001 Sportsman 500 4x4
    1996 Sportsman 500 4x4
    1999,2011 Worker 500 4x4

    Polaris Sportsman 500 Front axle Specification

    • Outboard CV joint spline count: 26
    • Inboard CV joint spline count: 22
    • Compressed overall axle length: 524mm

    Replace OEM Part Numbers:

    • Polaris 2200960, 2200961, 1380063, 1380066, 1380086, 1380085
