If your zero turn mower won’t start, makes a clicking noise, or only cranks intermittently, the starter motor is one of the most common failure points. In this guide, we’ll show you how to properly diagnose a bad starter and how to replace it step by step.
This applies to many popular engines used in zero turn mowers such as Kawasaki FR/FS/FH series, Kohler, Briggs & Stratton Vanguard, and Kubota mower engines.
Common Symptoms of a Bad Starter Motor
Before replacing any parts, it’s important to confirm the actual cause of the starting issue. A failing starter motor typically shows one or more of the following symptoms:
-Engine does not crank at all
-Single clicking sound when turning the key
-Slow or weak cranking speed
-Intermittent starting (starts sometimes, fails sometimes)
-Starter motor spins but does not engage the flywheel
-Burning smell coming from the starter area
If you notice any of these symptoms, the starter motor is often a likely cause. However, similar issues can also be related to the battery, starter relay, or wiring connections, so proper diagnosis is recommended before replacement.
Step 1: Check Battery
Many “starter problems” are actually battery-related.
Check the following:
-Battery voltage: should be 12.4V–12.7V
-Loose or corroded terminals
-Weak ground connection
-Blown main fuse or relay
If voltage drops below 12V during start attempt, the starter may not even be the real issue.
How to Test the Starter Motor
Method 1: Direct Battery Jump Test
Only do this if you are comfortable working with electrical systems.
Remove the starter from the engine
Connect jumper cables:
Positive → starter terminal
Negative → starter body (ground)
Observe behavior:
Spins strongly → starter is OK
Weak/no movement → starter is bad
Method 2: Voltage Test on Mower
Keep starter installed
Turn key to START position
Measure voltage at starter terminal:
12V present but no crank → starter failed
No voltage → ignition switch/relay issue
Recommended Replacement Starters (Based on Engine Type)
If your zero turn mower starter is confirmed faulty, you need to match the correct engine model and OEM number.
We carry replacement starters for most common mower engines:
Engines | Kawasaki Zero Turn Engines | Kubota Zero Turn & Mower Engines | Briggs & Stratton Vanguard Engines | Kohler Command / Courage engines | Honda GX630 / GX690 (commercial mowers) |
Starter Motor |
|
|
|  |
|
Fitment | Starter For Kawasaki FR691V / FR730V | Starter For Kubota ZD25 ZD28 ZD326 F Series | Starter For Vanguard V-Twin Engines | Starter For Cub Cadet Kohler Engines | Starter For Honda GX630 GX690 Engines |
OEM Part Number | 21163-0714 / 21163-7034 | 18413 / 1G069-63011 | 845640 / 807383 / 809054 | 128000-7480 / 228000-2640 / 2409801 / 2409803 | 31200-Z6L-003 / 428000-6410 |
Link |
If you're not sure which one fits your mower, check your engine model or contact us before ordering.

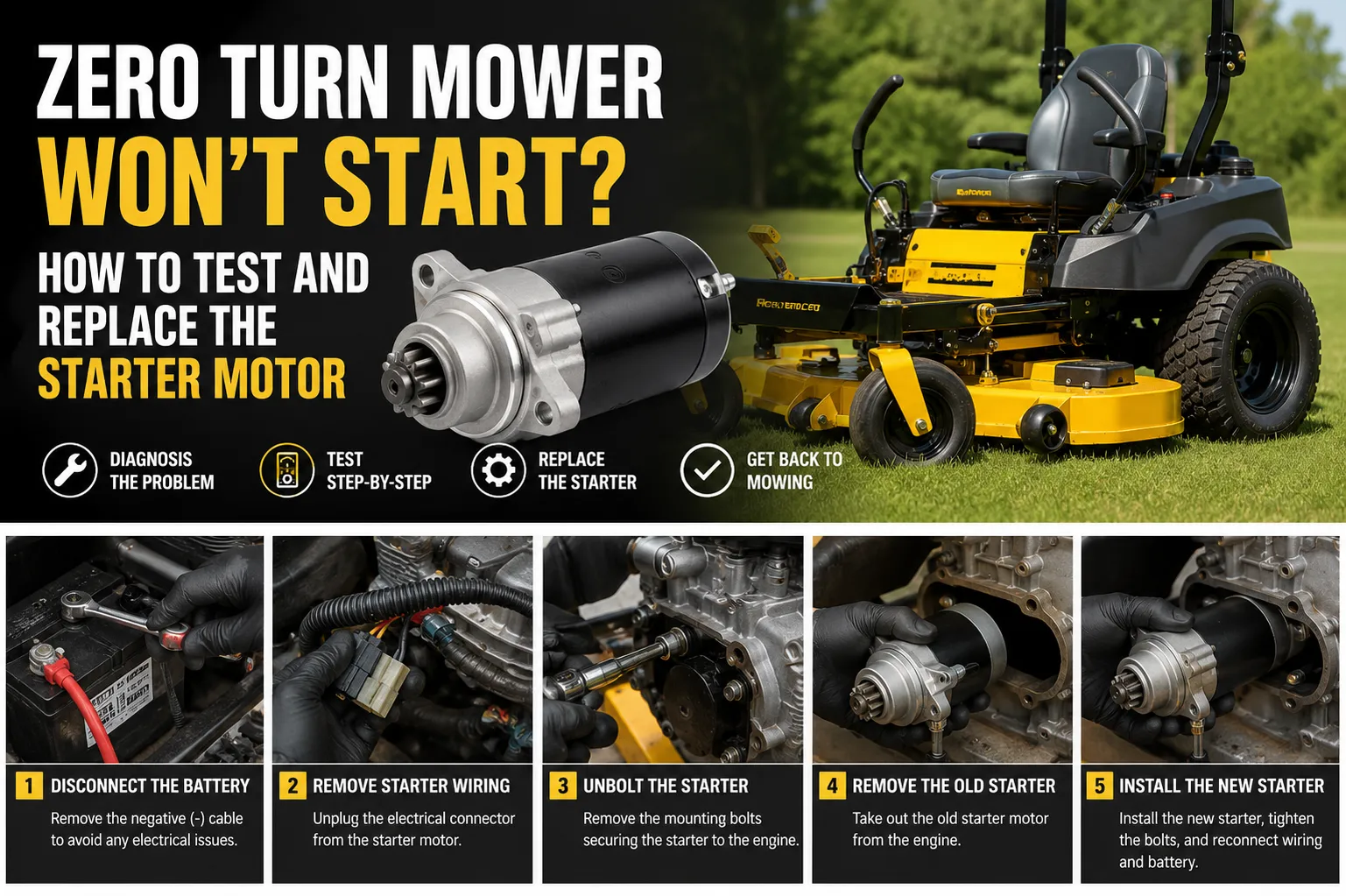

Step 3: Remove the Starter Motor
Before starting, disconnect battery negative terminal.
Tools Needed:
-Socket set (usually 10mm / 12mm / 14mm)
-Ratchet + extension
-Torque wrench
-Removal steps:
-Disconnect battery
-Remove starter electrical wire
-Remove mounting bolts (usually 2 bolts)
-Pull starter straight out from engine housing
Step 4: Install New Starter Motor
-Align new starter with mounting holes
-Insert bolts by hand first
-Tighten evenly
-Reconnect electrical terminal
Torque Specification (General Guide)
-Starter mounting bolts: 20–25 N·m (15–18 ft-lbs)
-Electrical terminal nut: snug only (do not overtighten)
-Over-tightening can damage aluminum engine housing.
Step 5: Final Test
After installing the new starter motor, complete the following final checks:
-Reconnect the battery
-Turn the ignition key to the START position
-The engine should crank smoothly and consistently
If the engine still does not start, the issue may be caused by other components. In that case, inspect the following:
-Safety switches (seat switch, brake switch, PTO switch)
-Starter relay or solenoid
-Flywheel ring gear for damaged or missing teeth
Common Mistakes to Avoid
To ensure a successful repair, avoid these common mistakes:
-Replacing the starter motor without testing the battery first
-Ignoring loose or corroded ground cables
-Misdiagnosing a clicking relay as a bad starter
-Failing to inspect damaged flywheel teeth
-Installing the wrong starter model (this is especially common on Kawasaki engines)
This guide applies to many zero turn mower engines such as:
-Kawasaki FR691V / FR730V / FH series
-Kohler Command / Courage engines
-Briggs & Stratton Vanguard V-Twin
-Kubota ZD / F series mower engines
-Honda GX630 / GX690 (commercial mowers)
Need Mower Starter Replacement?
If your starter is confirmed faulty, make sure to match:
-Engine model
-OEM part number
-Mounting style and gear teeth
Example OEM references:
-Kawasaki 21163-0714 / 21163-7034
-Briggs 845640 / 807383
-Kubota 18413 / 18414
Shop Compatible Starters:
Final Thoughts
A zero turn mower that won’t start is often caused by either battery failure or a worn starter motor. Proper testing before replacement can save time and money.
If your starter is confirmed bad,replacement is usually the most cost-effective solution compared to repair. We recommend choosing a direct OEM-compatible starter to ensure:
-Reliable starting performance
-Proper gear engagement
-Long service life
