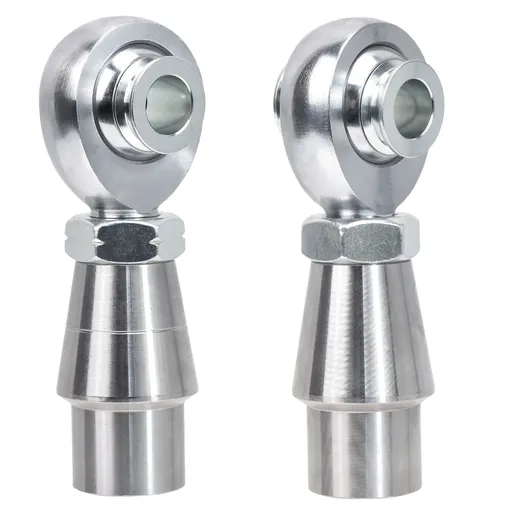

Chromoly Heim Joint Rod Ends Kit 5/8"-18 Thread x 5/8" Bore With 5/8-1/2 HMS Bung .120
Description
- Heim Joints Size: Thread Size: 5/8"-18, Ball Bore: .625", Ball Width: .750", Centerline Length: 2.625",Thread Length:1.625",Load Capacity: 17,955lbs, jam nut included.
- High Quality Material: Ball: 52100 Bearing Steel Precision Ground Heat Treated Hard Chrome Plated. Body: Carbon Steel Silver Zinc Plated PTFE Lined
- Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
- High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
- Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck..

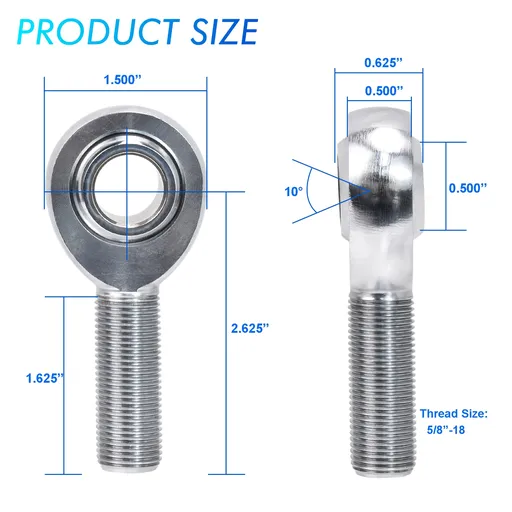

Rod End (XML10 & XMR10) Speicification
- Material: Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
- Thread Size: 5/8"-18
- Ball Bore: .625"
- Ball Width: .750"
- Centerline Length: 2.625"
- Thread Length:1.625"
- Load Capacity: 17,955lbs
- Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

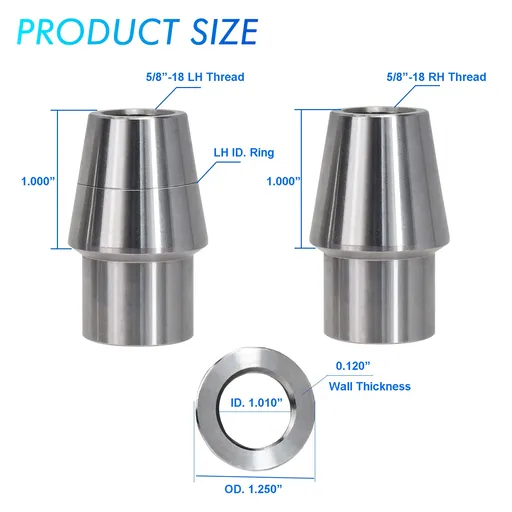

5/8 Bung (WTF-1010L & WTF-1010R) Speicification
- Material: Carbon Steel
- Qty: One RH & One LH
- Thread Size: 5/8"-18
- Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

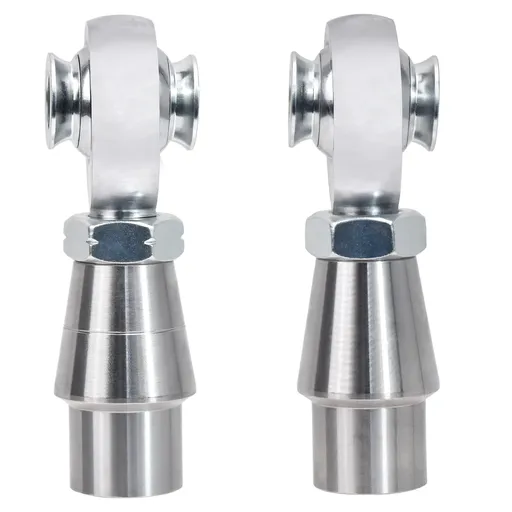

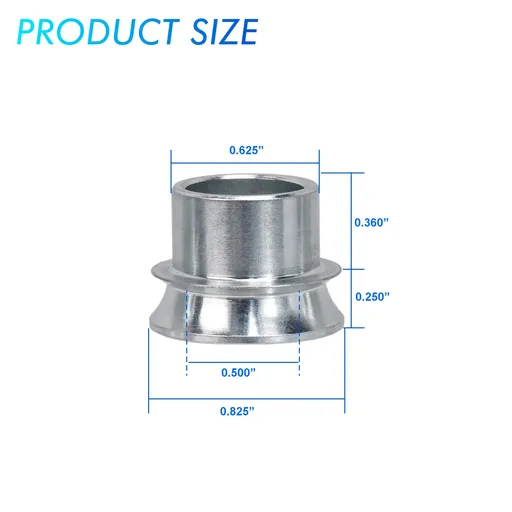

High Misalignment Spacer Specs (HMS10-84)
- Material: Zinc Plated Carbon Steel
- Insert Dia: .625
- Inside Bore: .500
- Outside Boss Dia:0.825
- Overall Length In Ball: 1.25
- Approximate Degrees: 54

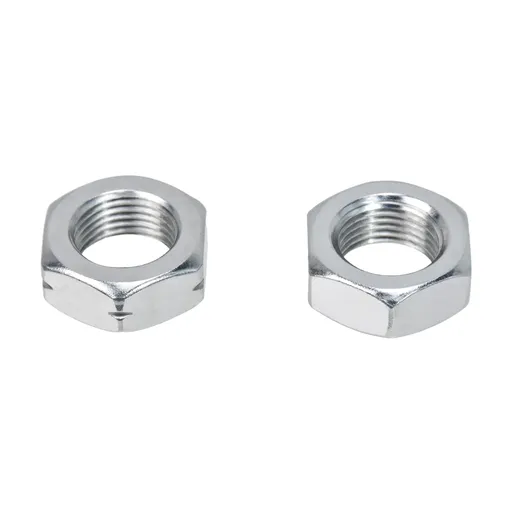

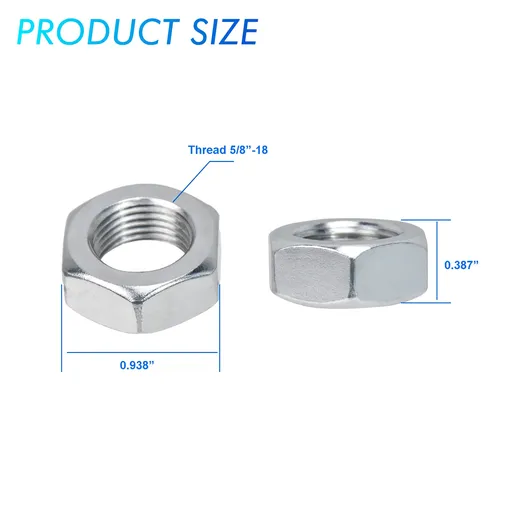

Jam Nut (JNL10S & JNR10S)
- Thread: 5/8"-18
- Width: Max 0.938"-Min 0.922"
- Height: Max 0.387"-Min 0.363"
- Carbon Steel, Silver Zinc Plated

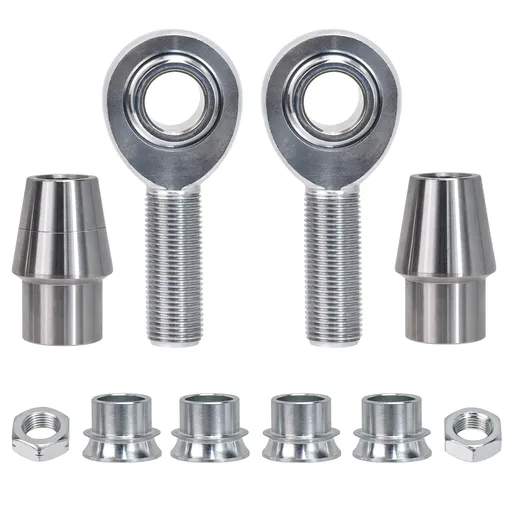

Package Include
- 1 x RH 5/8"-18 Jam Nut
- 1 x LH 5/8"-18 Jam Nut
- 1 x RH 5/8"-18 Thread, 5/8" Bore
- 1 x LH 5/8"-18 Thread, 5/8" Bore
- 1 x RH Tube Adapter
- 1 x LH Tube Adapter
- 4 x High Misalignment Spacer
