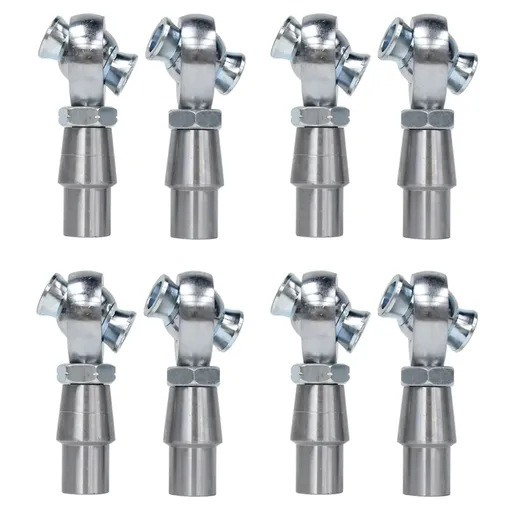

                4x Chromoly Panhard Bar Kit Heim Joints 3/4 x 3/4-16 with 3/4-5/8 HMS Bung .120
Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)
Rod End (XML12 & XMR12)
- Material: Right Hand, Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
 - Qty: One RH & One LH
 - Thread Size: 3/4"-16
 - Ball Bore: .750"
 - Ball Width: .875"
 - Centerline Length: 2.875"
 - Thread Length: 1.750"
 - Load Capacity: 28,081 lbs

3/4 Bung (WTF-1204L &WTF1204R)
- Material: Chromoly
 - Qty: One RH & One LH
 - Thread Size: 3/4"-16
 - Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

High Misalignment Spacer Specs (HMS12-108)
- Material: Zinc Plated Carbon Steel
 - Insert Dia: .75
 - Inside Bore: .625
 - Outside Boss Dia: .825
 - Overall Length In Ball: 1.875
 - Approximate Degrees: 52

Jam Nut(JNL10S & JNR10S)
- Material: Carbon Steel, Silver Zinc Plated
 - Qty: One RH & One LH
 - Thread: 3/4"-16
 - Width: 1 1/8" (1.125")
 - Height: 27/64"

Package Includes
- 2 x RH 3/4"-16 Jam Nut
 - 2 x LH 3/4"-16 Jam Nut
 - 2 x RH 3/4"-16 Thread, 3/4" Bore
 - 2 x LH 3/4"-16 Thread, 3/4" Bore
 - 2 x RH Tube Adapter
 - 2 x LH Tube Adapter
 - 8 x High Misalignment Spacer
