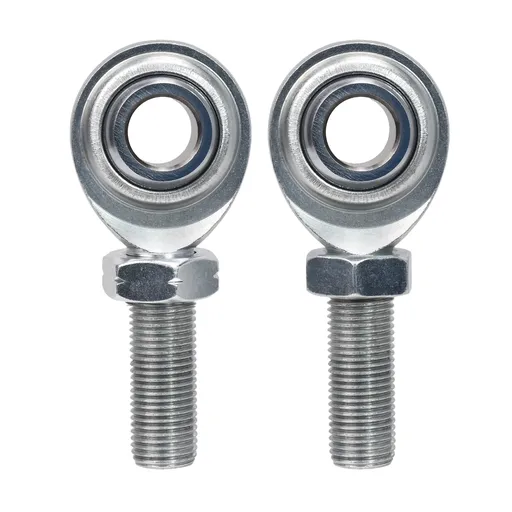

    CMRL6 3/8"-24 Thread x 3/8" Bore Heim Joint Rod End With Jam Nut

    9.99 5.00
    50% Off

    Unit Type: Heim Joint

    Material: Carbon Steel

    Thread Size: 3/8"-24

    Bore: 3/8" (.375" )

    House Width : 1"

    Thread Length : 1.250"

    Description

    • Heim Joints Size: Bore: 3/8" (.375" ), House Width: 1", Ball Depth: 1/2" (.500" ), Thread Size: 3/8"-24, Thread Length: 1.250", Static Radial Load:6323 lbs, Center Line Length:1.938", jam nut included.
    • High Quality Material: Ball: 52100 Bearing Steel Precision Ground Heat Treated Hard Chrome Plated. Body: Carbon Steel Silver Zinc Plated PTFE Lined
    • Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
    • High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
    • Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck..

    Rod End (CMR6 & CML6) Speicification

    • Material: Male, Carbon Steel, Silver Zinc Plated
    • Bore: 3/8" (.375" )
    • House Width: 1"
    • Ball Depth: 1/2" (.500" )
    • Thread Size: 3/8"-24
    • Thread Length: 1.250"
    • Static Radial Load:6323 lbs
    • Center Line Length:1.938"
    • Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

    Jam Nut (JNR6S & JNL6S) Speicification

    • Material: Carbon Steel, Silver Zinc Plated
    • Thread: 3/8"-24
    • Width: 0.562"
    • Height: 0.227"

    Package Include

    • 1 x RH 3/4"-16 Thread x 5/8" Bore Rod End
    • 1 x LH 3/4"-16 Thread x 5/8" Bore Rod End
    • 1 x RH 3/4"-16 Thread Jam Nut
    • 1 x LH 3/4"-16 Thread Jam Nut
