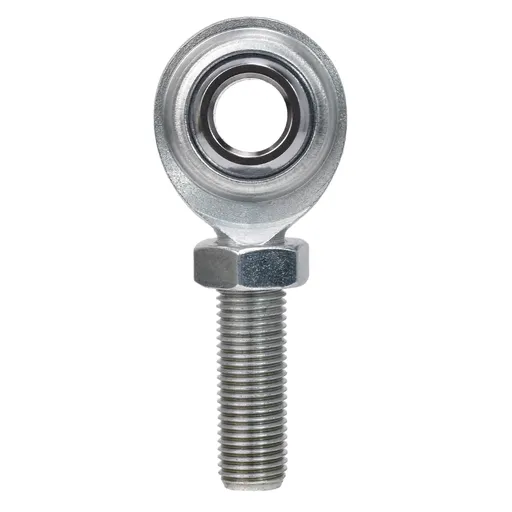

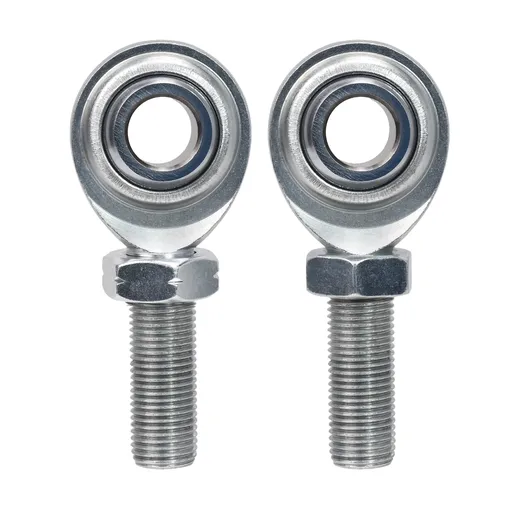

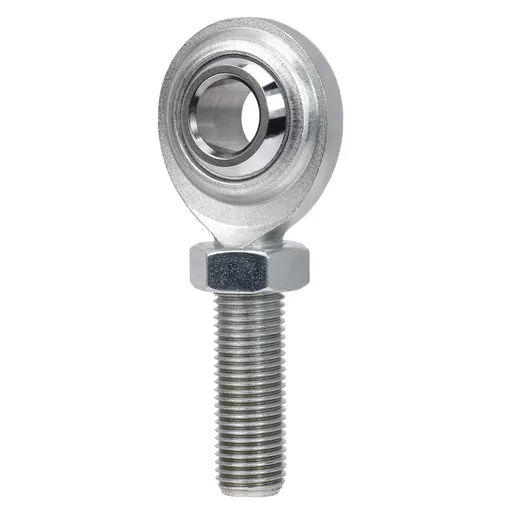

4x CMRL6 3/8"-24 Thread x 3/8" Bore Heim Joints Rod End With Jam Nuts
Description
- Heim Joints Size: Bore: 3/8" (.375" ), House Width: 1", Ball Depth: 1/2" (.500" ), Thread Size: 3/8"-24, Thread Length: 1.250", Static Radial Load:6323 lbs, Center Line Length:1.938", jam nut included.
- High Quality Material: Ball: 52100 Bearing Steel Precision Ground Heat Treated Hard Chrome Plated. Body: Carbon Steel Silver Zinc Plated PTFE Lined
- Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
- High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
- Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck..

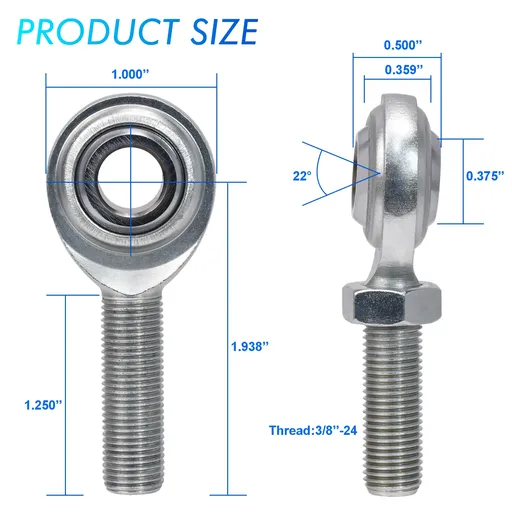

Rod End (CMR6 & CML6) Speicification
- Material: Male, Carbon Steel, Silver Zinc Plated
- Bore: 3/8" (.375" )
- House Width: 1"
- Ball Depth: 1/2" (.500" )
- Thread Size: 3/8"-24
- Thread Length: 1.250"
- Static Radial Load:6323 lbs
- Center Line Length:1.938"
- Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

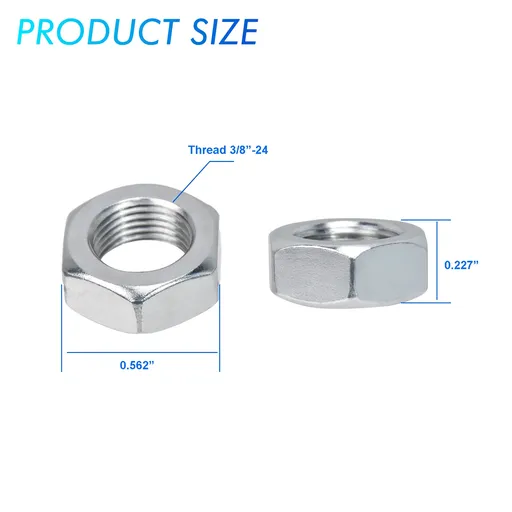

Jam Nut (JNR6S & JNL6S) Speicification
- Material: Carbon Steel, Silver Zinc Plated
- Thread: 3/8"-24
- Width: 0.562"
- Height: 0.227"
Package Include
- 4 x RH 3/4"-16 Thread x 5/8" Bore Rod End
- 4 x LH 3/4"-16 Thread x 5/8" Bore Rod End
- 4 x RH 3/4"-16 Thread Jam Nut
- 4 x LH 3/4"-16 Thread Jam Nut
