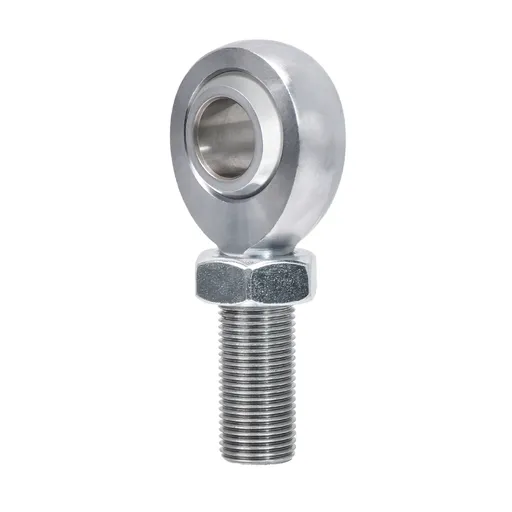

XMR10-12 3/4"-16 Thread x 5/8" Bore RH Chromoly Heim Joints Rod End With Jam Nut
Description
- Heim Joints Size: Bore: 5/8" (.625" ), Width: 1.75", Ball Width: 3/4" (.750" ), Thread Size: 3/4"-16, Thread Length: 1.75", Static Radial Load:40,572 lbs, Center Line Length:2.875", jam nut included.
- High Quality Material: The carbon steel rod end body and jam nut ensures long service life.
- Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
- High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
- Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck..

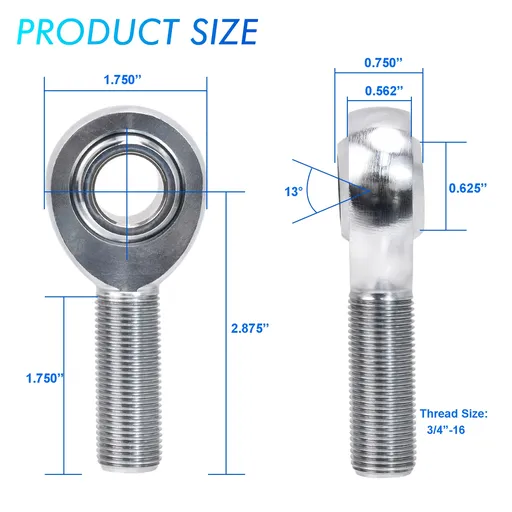

Rod End (XMR10-12) Speicification
- Material: Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
- Bore: 5/8" (.625" )
- Width: 1.75"
- Ball Width: 3/4" (.750" )
- Thread Size: 3/4"-16
- Thread Length: 1.75"
- Static Radial Load:40,572 lbs
- Center Line Length:2.875"
- Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.
Jam Nut (JNR12S) Speicification
- Material: Carbon Steel, Silver Zinc Plated
- Thread: 3/4"-16
- Width: 1 1/8" (1.125")
- Height: 27/64"

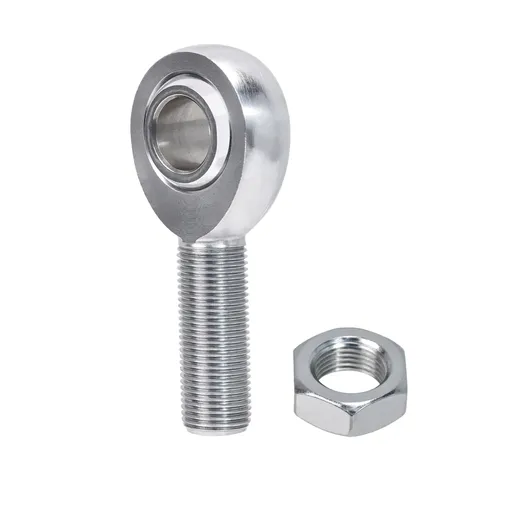

Package Include
- 1 x RH 3/4"-16 Thread x 5/8" Bore Rod End
- 1 x RH 3/4"-16 Thread Jam Nut
