Chromoly 4 Link 1/2" x 5/8"-18 Rod End Kit Heim Joint Bungs .120" Wall XMRL8-10


https://www.hexautoparts.com/web/image/product.template/3954/image_1920?unique=e24d008

31.99 31.990000000000002 USD 63.98

63.98

50% Off

Not Available For Sale

Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time
    Qty:
    Product Image

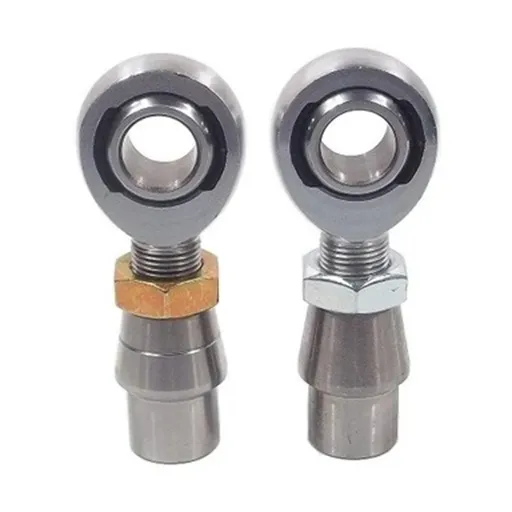

    Chromoly 4 Link 1/2" x 5/8"-18 Rod End Kit Heim Joint Bungs .120" Wall XMRL8-10

    63.98 31.99
    50% Off

    Unit Type : Heim Joint

    Material : Chromoly

    Bung Size : 1 1/4" OD. x .120" Wall x 1.01" ID

    Bore Size : 1/2" (0.500")

    Thread Size : 5/8"-18

    Description

    • Heim Joints Size: Thread Size: 5/8"-18, Ball Bore: .500", Ball Width: .625", Centerline Length: 2.625", Thread Length: 1.625", jam nut included.
    • High Quality Material: The carbon steel rod end body and jam nut ensures long service life.
    • Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
    • High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
    • Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

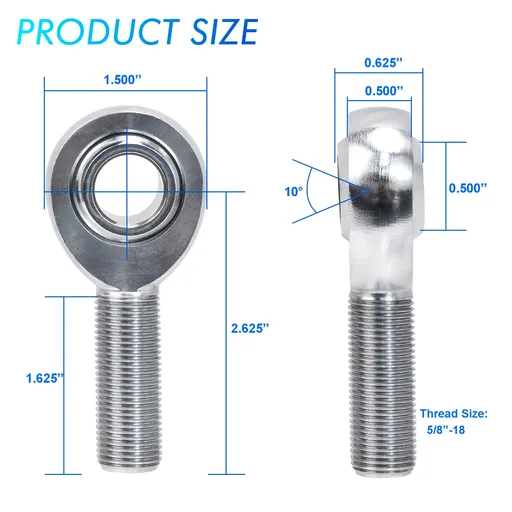

    Rod End (XML8-10 & XMR8-10)

    • Material: Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
    • Thread Size: 5/8"-18
    • Ball Bore: .500"
    • Ball Width: .625"
    • Centerline Length: 2.625"
    • Thread Length: 1.625"
    • Load Capacity: 31,390 lbs

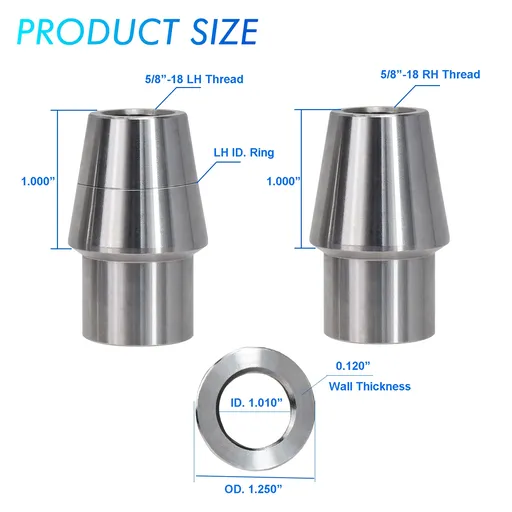

    5/8 Bung (WIB 5/8-18 LH .120 & WIB 5/8-18 RH .120)

    • Material: Carbon Steel
    • Thread Size: 5/8"-18
    • Bung Size: 1 1/4" OD. x .120" Wall x 1.01" ID.

    Jam Nut(JNL10S & JNR10S)

    • Material: Carbon Steel, Zinc Plated
    • Thread: 5/8"-18
    • Width: 15/16" (0.938")
    • Height: 3/8"(0.375")

    Package Includes

    • 1 x RH 5/8"-18 Jam Nut
    • 1 x LH 5/8"-18 Jam Nut
    • 1 x RH 5/8"-18 Thread, 1/2" Bore
    • 1 x LH 5/8"-18 Thread, 1/2" Bore
    • 1 x RH Weld-In Bung
    • 1 x LH Weld-In Bung
