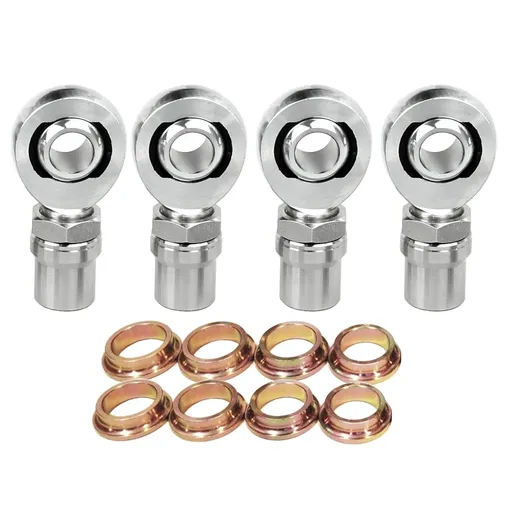

    2x Chromoly Panhard Bar Kit Heim Joints 1" x 1-1/4"-12 w/ 1" Cone Spacer Bung .120

    337.98 168.99
    50% Off

    Unit Type : Heim Joint

    Material : Chromoly

    Quantity: 4 Pairs

    Bung Size : 1 3/4" OD. x .120" Wall x 1.51" ID

    Bore Size : 1"

    Thread Size : 1-1/4" -12

    Description

    • Heim Joints Size: Thread Size: 1-1/4" -12, Ball Bore: 1", Ball Width: 1-3/8"(1.375"),Centerline Length: 4.132", Thread Length: 2.404", jam nut included.
    • High Quality Material: The carbon steel rod end body and jam nut ensures long service life.
    • Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
    • High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
    • Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

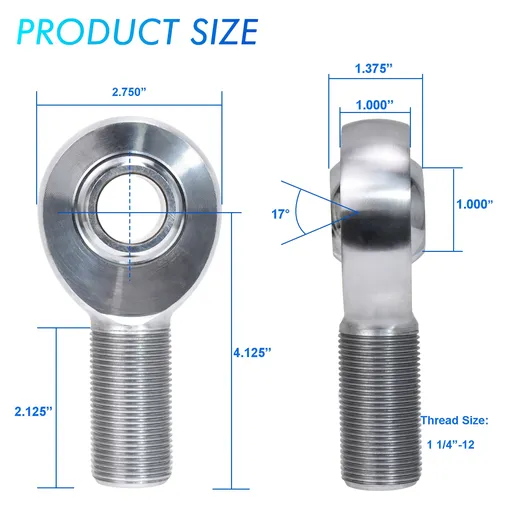

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (XML16 & XMR16)

    • Material: Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
    • Qty: One RH & One LH
    • Thread Size: 1-1/4" -12
    • Ball Bore: 1"
    • Ball Width: 1-3/8"(1.375")
    • Centerline Length: 4.132"
    • Thread Length: 2.404"
    • Load Capacity: 72,000 lbs

    Bung (WTF-2001L & WTF-2001R)

    • Material: Chromoly
    • Qty: One RH & One LH
    • Thread Size: 1-1/4" -12
    • Bung Size: 1 3/4" OD. x .120" Wall x 1.51" ID.

    Cone Spacer

    • QTY: 4PCS
    • Material: Carbon steel yellow zinc
    • Inside Bore: 1"

    Jam Nut (JNL16S & JNR16S)

    • Material: Carbon Steel, Silver Zinc Plated
    • Qty: One RH & One LH
    • Thread: 1-1/4" -12
    • Width: Max 1.875"-Min 1.625"
    • Height: Max 0.575"-Min 0.519"

    Package Includes

    • 2 x RH 1-1/4" -12 Jam Nut
    • 2 x LH 1-1/4" -12 Jam Nut
    • 2 x RH 1-1/4" -12 Thread, 1" Bore
    • 2 x LH 1-1/4" -12 Thread, 1" Bore
    • 2 x RH Tube Adapter
    • 2 x LH Tube Adapter
    • 8 x Cone Spacers
