Chromoly Heim Joints Rod End 3/4"-16 Thread x 3/4 Bore with Jam Nut XMR12 RH


https://www.hexautoparts.com/web/image/product.template/3949/image_1920?unique=482ca4c

15.88 15.88 USD 31.76

31.76

50% Off

Not Available For Sale

Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS Fast shipping 2-5 Days
    Qty:
    Product Image

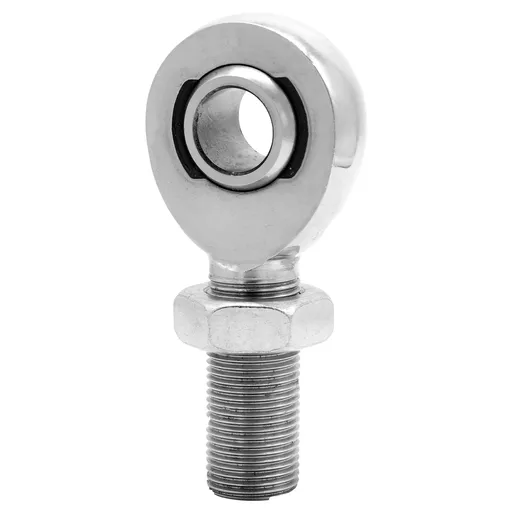

    Chromoly Heim Joints Rod End 3/4"-16 Thread x 3/4 Bore with Jam Nut XMR12 RH

    31.76 15.88
    50% Off

    Unit Type : Heim Joint

    Material : Chromoly

    Position: Right (RH)

    Bore Size : 3/4" (.750" )

    Thread Size : 3/4"-16

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (XMR12)

    • Material: Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
    • Bore: 3/4" (.750" )
    • Width: 1.75"
    • Ball Width: 7/8" (.875" )
    • Thread Size: 3/4"-16
    • Thread Length: 1.75"
    • Static Radial Load:28,081 lbs
    • Center Line Length:2.88"

    Jam Nut (JNR12S)

    • Material: Carbon Steel,Zinc Plated
    • Thread: 3/4"-16
    • Width: 1 1/8" (1.125")
    • Height: 27/64"

    Package Includes

    • 1 x RH 3/4"-16 Thread x 3/4" Bore Rod End
    • 1 x RH 3/4"-16 Thread Jam Nut
