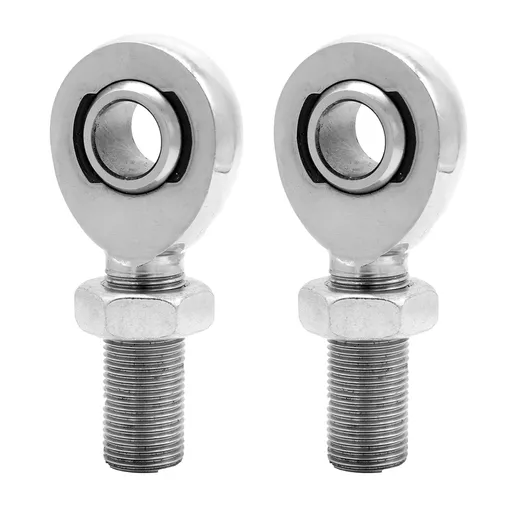

    Chromoly Heim Joints Rod End 3/4"-16 Thread x 3/4" Bore Jam Nut XMRL12 LH RH

    61.76 30.88
    50% Off

    Unit Type : Heim Joint

    Material : Chromoly

    Position: Right & Left

    Bore Size : 3/4" (.750" )

    Thread Size : 3/4"-16

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (XMR12 & XML12)

    • Material: Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
    • Bore: 3/4" (.750" )
    • Width: 1.75"
    • Ball Width: 7/8" (.875" )
    • Thread Size: 3/4"-16
    • Thread Length: 1.75"
    • Static Radial Load:28,081 lbs
    • Center Line Length:2.88"

    Jam Nut (JNR12S)

    • Material:Carbon Steel,Zinc Plated
    • Thread: 3/4"-16
    • Width: 1 1/8" (1.125")
    • Height: 27/64"

    Package Includes

    • 1 x RH 3/4"-16 Thread x 3/4" Bore Rod End
    • 1 x LH 3/4"-16 Thread x 3/4" Bore Rod End
    • 1 x RH 3/4"-16 Thread Jam Nut
    • 1 x LH 3/4"-16 Thread Jam Nut
