4x Chromoly Panhard Bar Kit Heim Joints 1x1/4" -12 with 1-5/8 HMS Bung .120


https://www.hexautoparts.com/web/image/product.template/5664/image_1920?unique=ca921a2

173.50 173.5 USD 346.99

346.99

50% Off

Not Available For Sale

Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time
    Qty:
    Product Image

    4x Chromoly Panhard Bar Kit Heim Joints 1x1/4" -12 with 1-5/8 HMS Bung .120

    346.99 173.50
    50% Off

    Unit Type: Heim Joint

    Material: Carbon Steel

    Thread Size: 1-1/4" -12

    HMS: 5/8" (.625 )

    Bung Size : 3/4" OD. x .120" Wall x 1.51" ID.

    Description

    • Heim Joints Size: Thread Size: 1-1/4" -12, Ball Bore: 1", Ball Width: 1-3/8"(1.375"), Centerline Length: 4.132", Thread Length: 2.404", jam nut included.
    • High Quality Material: The carbon steel rod end body and jam nut ensures long service life.
    • Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
    • High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
    • Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

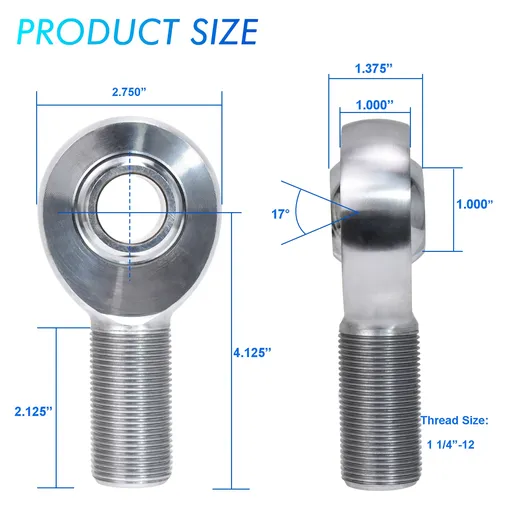

    Rod End (XML16 & XMR16)

    • Material: Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
    • Qty: One RH & One LH
    • Thread Size: 1-1/4" -12
    • Ball Bore: 1"
    • Ball Width: 1-3/8"(1.375")
    • Centerline Length: 4.132"
    • Thread Length: 2.404"
    • Load Capacity: 72,000 lbs

    Blunt Bung (BLT 1.5-20R & BLT 1.5-20L)

    • Material: Carbon Steel
    • Qty: One RH & One LH
    • Thread Size: 1-1/4" -12
    • Bung Size: 1 3/4" OD. x .120" Wall x 1.51" ID.

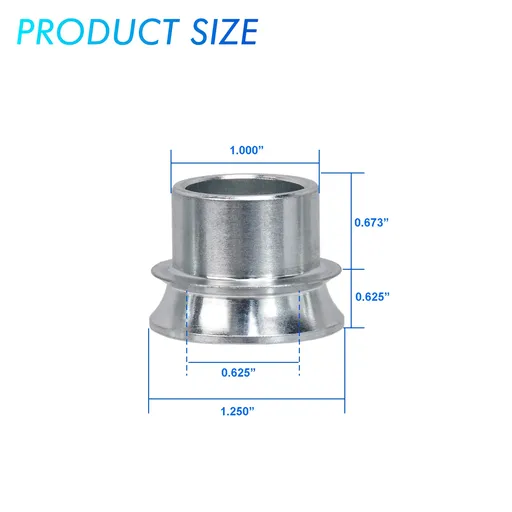

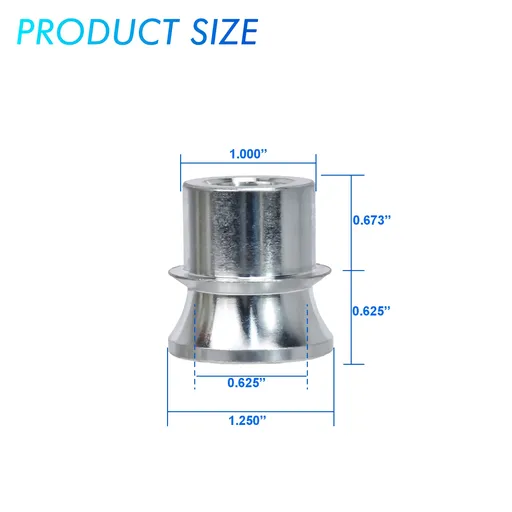

    High Misalignment Spacer Specs (HMS16-1010)

    • QTY: 16PCS
    • Material: Carbon Steel, Silver Zinc Plated
    • Insert Dia: 1"
    • Inside Bore: 0.625"
    • Outside Boss Dia: 1.25"
    • Overall Length In Ball: 2.625"

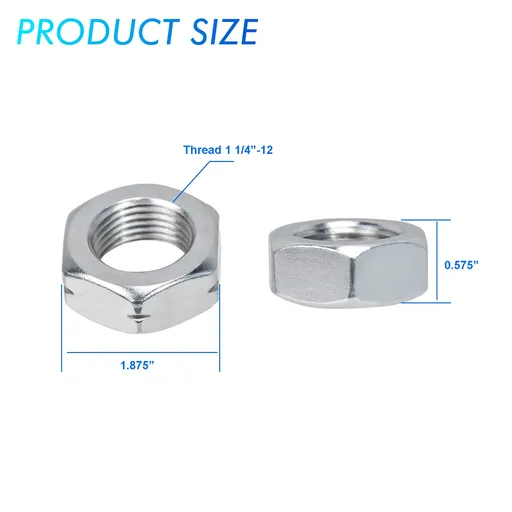

    Jam Nut (JNL16S & JNR16S)

    • Qty: One RH & One LH
    • Thread: 1-1/4" -12
    • Width: Max 1.875"-Min 1.625"
    • Height: Max 0.575"-Min 0.519"
    • Material:Carbon Steel, Silver Zinc Plated

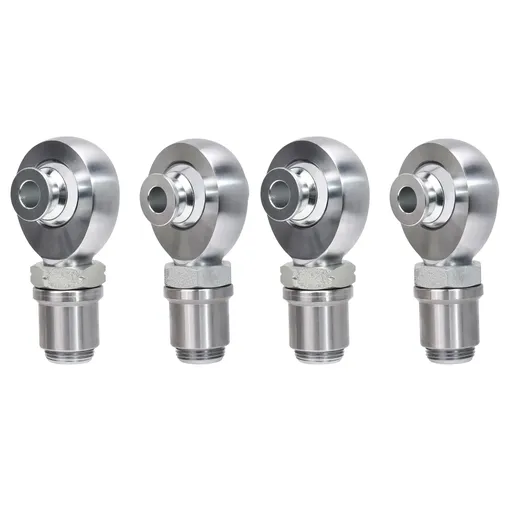

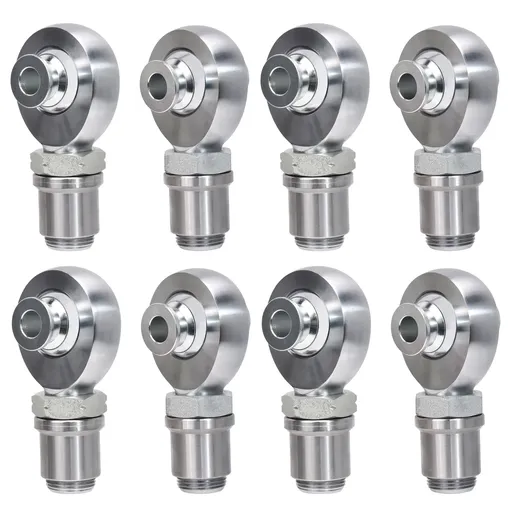

    Package Include

    • 4 x RH 1-1/4" -12 Jam Nut
    • 4 x LH 1-1/4" -12 Jam Nut
    • 4 x RH 1-1/4" -12 Thread, 1" Bore
    • 4 x LH 1-1/4" -12 Thread, 1" Bore
    • 4 x RH Blunt Bung
    • 4 x LH Blunt Bung
    • 16 x High Misalignment Spacer
