4x Chromoly Panhard Bar Rod End 5/8 x 3/4-16 Heim Joint Bungs .120" Wall XMRL10-12
Description
- Heim Joints Size: Thread Size: 3/4"-16, Ball Bore: .625", Ball Width: .750", Centerline Length: 2.875", Thread Length: 1.750", jam nut included.
- High Quality Material: The carbon steel rod end body and jam nut ensures long service life.
- Zinc-plated Finish: The rod end and jam nut surface with silver zinc plated.
- High Performance Features: Large load rating, low noise, anti-corrosion, tough, and durable.
- Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.
Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

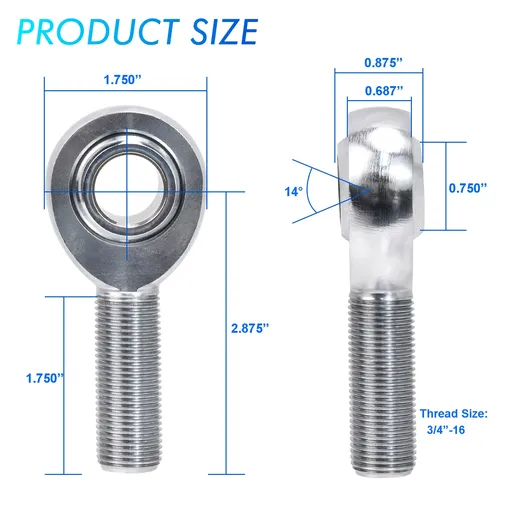

Rod End (XML12 & XMR12)
- Material:Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
- Thread Size: 3/4"-16
- Ball Bore: .625"
- Ball Width: .750"
- Centerline Length: 2.875"
- Thread Length: 1.750"
- Load Capacity: 40,572 lbs
3/4 Bung (WTF-1204L &WTF1204R)
- Material: Chromoly
- Thread Size: 3/4"-16
- Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

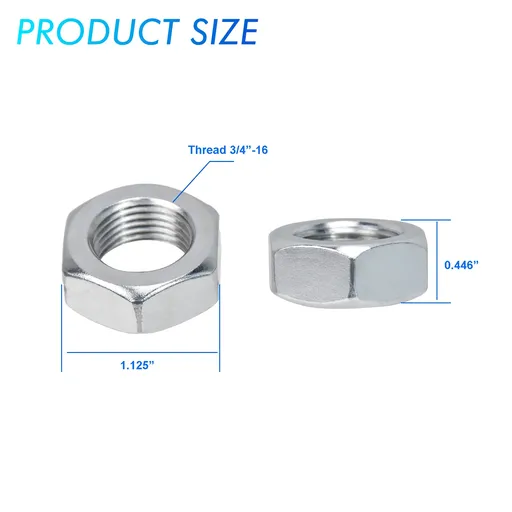

Jam Nut (JNL12S & JNR12S)
- Thread: 3/4"-16
- Width: 1 1/8" (1.125")
- Height: 27/64"
Package Includes
- 4 x RH 3/4"-16 Jam Nut
- 4 x LH 3/4"-16 Jam Nut
- 4 x RH 3/4"-16 Thread, 5/8" Bore
- 4 x LH 3/4"-16 Thread, 5/8" Bore
- 4 x RH Tube Adapter
- 4 x LH Tube Adapter
