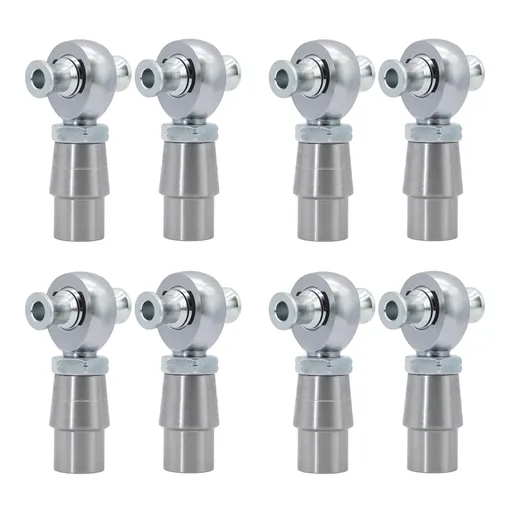

4x Heim Joints Rod Ends 7/8 x 7/8-14 w/ 7/8-1/2 HMS & Bung .120 Wall XMR14 & XML14
Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)
Rod End (XML14 & XMR14)
- Material: Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
- Thread Size: 7/8"-14
- Ball Bore: .875"
- Ball Width: .875"
- Centerline Length: 3.375"
- Thread Length: 2"
- Load Capacity: 45,051lbs
Bung (WTF-1401L & WTF-1401R)
- Material: Chromoly
- Thread Size: 7/8"-14
- Bung Size: 1 1/2" OD x 0.120" Wall x 1.26" ID.
High Misalignment Spacer Specs (HMS14-813)
- Material: Zinc Plated Carbon Steel
- Insert Dia: .875
- Inside Bore: .500
- Outside Boss Dia:1
- Overall Length In Ball: 2.5
- Approximate Degrees: 52
Jam Nut (JNL14S & JNR14S)
- Material: Carbon Steel, Zinc Plated
- Thread: 7/8"-14
- Width: Max 1.312"-Min 1.269"
- Height: Max 0.510"-Min 0.458"
Package Includes
- 4 x LH Thread Rod End
- 4 x RH Thread Rod End
- 4 x LH Jam Nut
- 4 x RH Jam Nut
- 2 x LH Tube Adapter
- 2 x RH Tube Adapter
- 8 x LH High Misalignment Spacer
- 8 x RH High Misalignment Spacer
