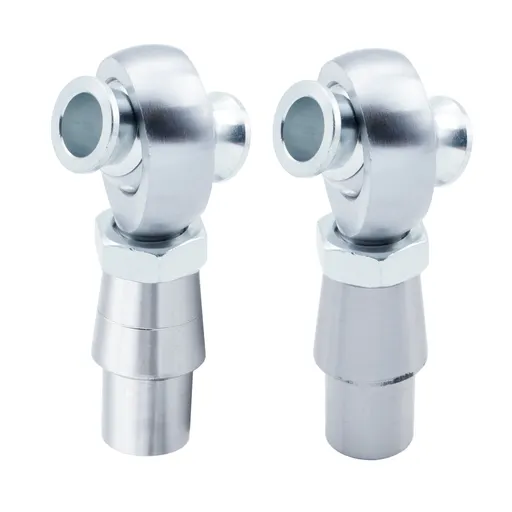

Economy Panhard Bar Kit Heim Joints 3/4 x 3/4-16 with 3/4-5/8 HMS Bung .120


https://www.hexautoparts.com/web/image/product.template/3938/image_1920?unique=3658078

41.99 41.99 USD 41.99

83.98

0% Off

Not Available For Sale

Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time
    Qty:
    Product Image

    Economy Panhard Bar Kit Heim Joints 3/4 x 3/4-16 with 3/4-5/8 HMS Bung .120

    41.99 41.99
    0% Off

    Unit Type : Heim Joint

    Material : Carbon Steel

    Bung Size : 1" 1/4 OD. x .120" Wall x 1.01" ID

    HMS : 3/4-5/8

    Thread Size : 3/4"-16

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (CML12 & CMR12)

    • Material: Economy Carbon Steel
    • Qty: One RH & One LH
    • Thread Size: 3/4"-16
    • Ball Bore: .750"
    • Ball Width: .875"
    • Centerline Length: 2.875"
    • Thread Length: 1.750"
    • Load Capacity: 15,894lbs

    Bung(WTF-1204L &WTF1204R)

    • Material: 1045 Steel
    • Qty: One RH & One LH
    • Thread Size: 3/4"-16
    • Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

    High Misalignment Spacer Specs

    • Material: 1045 Steel
    • Insert Dia: .750
    • Inside Bore: .625
    • Outside Boss Dia: .950
    • Overall Length In Ball: 1.875
    • Approximate Degrees: 52

    Jam Nut (JNL12S & JNR12S)

    • Qty: One RH & One LH
    • Thread: 3/4"-16
    • Width: 1 1/8" (1.125")
    • Height: 27/64"
    • Zinc Plated

    Package Includes

    • 1 x RH 3/4"-16 Jam Nut
    • 1 x LH 3/4"-16 Jam Nut
    • 1 x RH 3/4"-16 Thread, 3/4" Bore
    • 1 x LH 3/4"-16 Thread, 3/4" Bore
    • 1 x RH Tube Adapter
    • 1 x LH Tube Adapter
    • 2 x RH 3/4"x5/8 High Misalignment Spacer
    • 2 x LH 3/4"x5/8 High Misalignment Spacer
