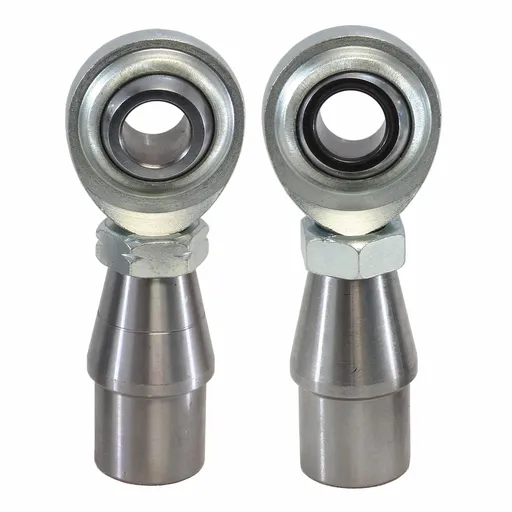

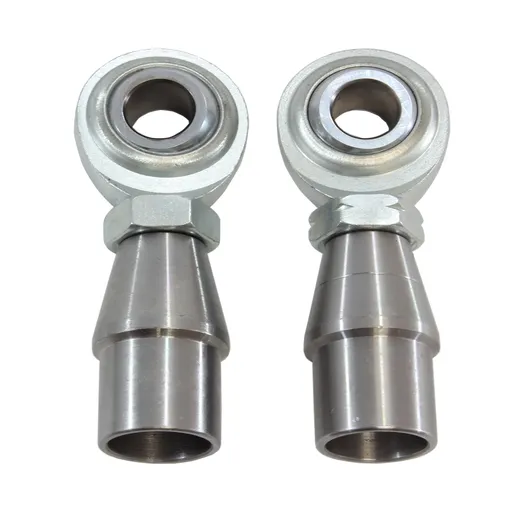

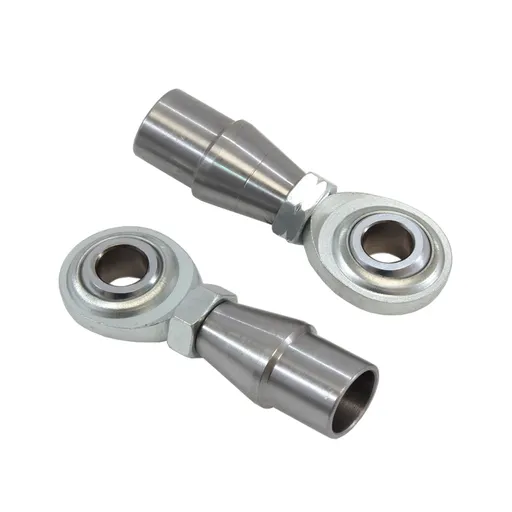

Economy Panhard Bar Rod End 1/2" x 1/2"-20 Heim Joint Bungs .065" Wall


https://www.hexautoparts.com/web/image/product.template/3930/image_1920?unique=815ae1d

23.99 23.990000000000002 USD 47.98

47.98

50% Off

Not Available For Sale

Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS Fast shipping 2-5 Days
    Qty:
    Product Image

    Economy Panhard Bar Rod End 1/2" x 1/2"-20 Heim Joint Bungs .065" Wall

    47.98 23.99
    50% Off

    Unit Type : Heim Joint

    Material : Carbon Steel

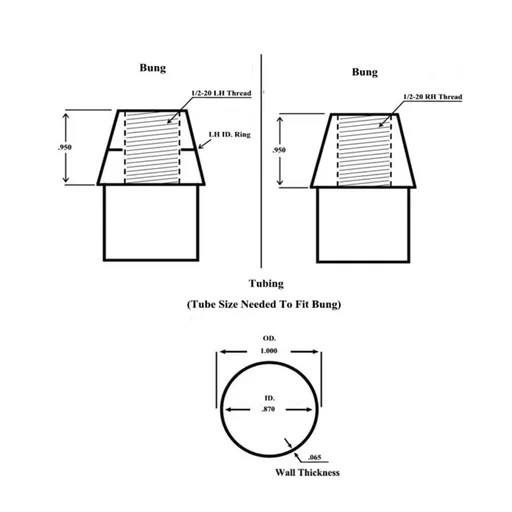

    Bung Size : 1" OD. x .065" Wall x 0.870" ID

    Bore Size: 1/2" (0.500")

    Thread Size : 1/2"-20

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (CML8 & CMR8)

    • Material: Economy Carbon Steel
    • Qty: One RH & One LH
    • Thread Size: 1/2"-20
    • Ball Bore: .500"
    • Ball Width: .625"
    • Centerline Length: 2.438"
    • Thread Length: 1.500"
    • Load Capacity: 10,046 lbs

    1/2 Bung (WTF-0805L & WTF0805R)

    • Material: Carbon Steel
    • Qty: Four RH & Four LH (Left Mark With Groove)
    • Thread Size: 3/4"-16
    • Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

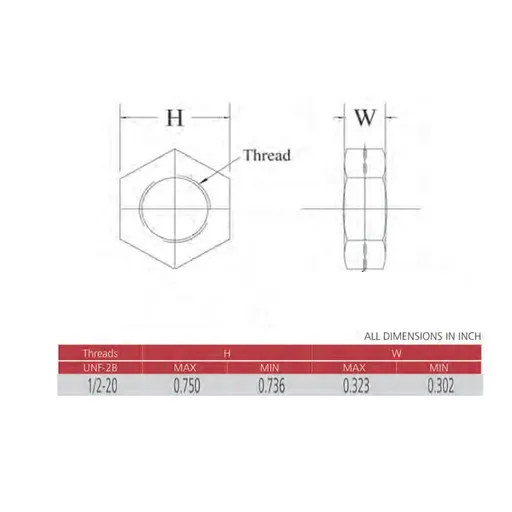

    Jam Nut (JNL8S & JNR8S)

    • Material: Zinc Plated
    • Qty: One RH & One LH
    • Thread: 1/2"-20
    • Width: 3/4" (0.75")
    • Height: 5/16"(0.313")

    Package Includes:

    • 1 x RH 1/2"-20 Jam Nut
    • 1 x LH 1/2"-20 Jam Nut
    • 1 x RH 1/2"-20 Thread, 1/2" Bore
    • 1 x LH 1/2"-20 Thread, 1/2" Bore
    • 1 x RH Tube Adapter
    • 1 x LH Tube Adapter
