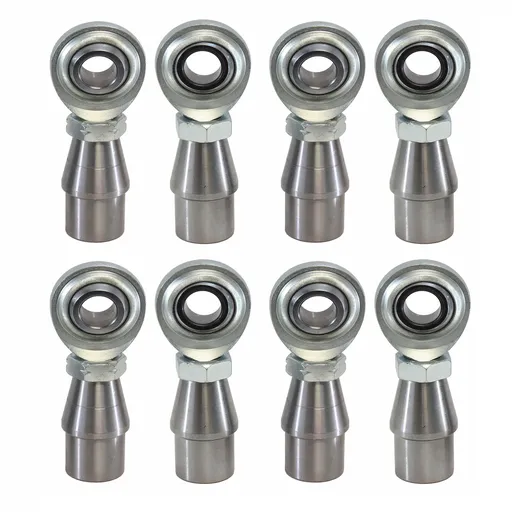

4x Economy Panhard Bar Rod End 1/2" x 1/2"-20 Heim Joint Bungs .065" Wall


https://www.hexautoparts.com/web/image/product.template/3931/image_1920?unique=3658078

94.99 94.99 USD 94.99

189.98

0% Off

Not Available For Sale

Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time
    Qty:
    Product Image

    4x Economy Panhard Bar Rod End 1/2" x 1/2"-20 Heim Joint Bungs .065" Wall

    94.99 94.99
    0% Off

    Unit Type : Heim Joint

    Material : Carbon Steel

    Bung Size : 1" OD. x .065" Wall x 0.870" ID

    Bore Size: 1/2" (0.500")

    Thread Size : 1/2"-20

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (CML8 & CMR8)

    • Material: Carbon Steel,Silver Zinc Plated
    • Qty: Four RH & Four LH
    • Thread Size: 1/2"-20
    • Ball Bore: .500"
    • Ball Width: .625"
    • Centerline Length: 2.438"
    • Thread Length: 1.500"
    • Load Capacity: 10,046 lbs

    1/2 Bung (WIB 1/2-20 LH .065 & WIB 1/2-20 RH .065)

    • Material: Carbon Steel
    • Qty: Four RH & Four LH
    • Thread Size: 1/2"-20
    • Bung Size: 1" OD. x .065" Wall x 0.870" ID.

    Jam Nut (JNL8S & JNR8S)

    • Material: Carbon Steel
    • Qty: Four RH & Four LH
    • Thread Size: 1/2"-20
    • Bung Size: 1" OD. x .065" Wall x 0.870" ID.

    Jam Nut (JNL8S & JNR8S)

    • Material: Carbon Steel,Zinc Plated
    • Qty: Four RH & Four LH
    • Thread: 1/2"-20
    • Width: 3/4" (0.75")
    • Height: 5/16"(0.313")

    Package Includes

    • 4 x RH 1/2"-20 Jam Nut
    • 4 x LH 1/2"-20 Jam Nut
    • 4 x RH 1/2"-20 Thread, 1/2" Bore
    • 4 x LH 1/2"-20 Thread, 1/2" Bore
    • 4 x RH Weld-In Bung
    • 4 x LH Weld-In Bung
