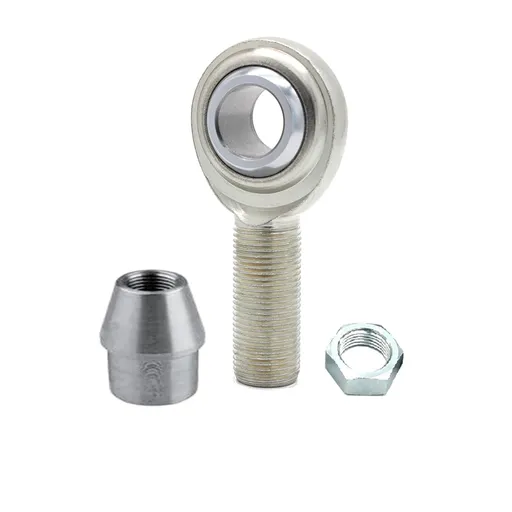

    3/4 x 3/4-16 Economy 4 Link Rod End Kit With 3/4 Steel Cone Spacers & Bungs .120 Wall Heim Joint Rod End 4pcs

    237.98 118.99
    50% Off

    Unit Type : Heim Joint

    Quantity : 4 Pairs

    Bore Size : 3/4" (0.750")

    Thread Size : 3/4"-16

    Material : Carbon Steel

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

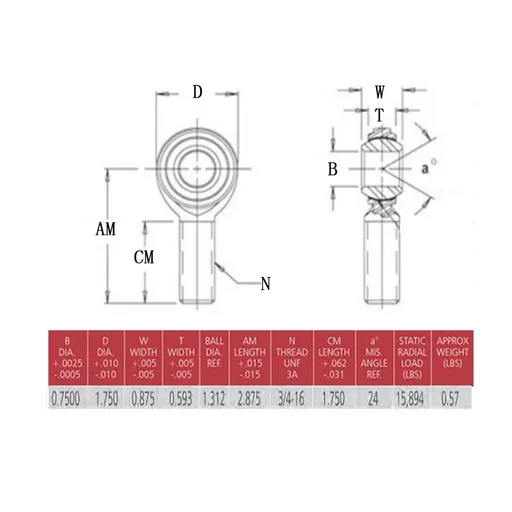

    Rod End (CML12 & CMR12)

    • Material: Carbon Steel,Zinc Plated
    • Qty:Four RH & Four LH
    • Thread Size: 3/4"-16
    • Ball Bore: .750"
    • Ball Width: .875"
    • Centerline Length: 2.875"
    • Thread Length: 1.750"
    • Load Capacity: 15,894 lbs

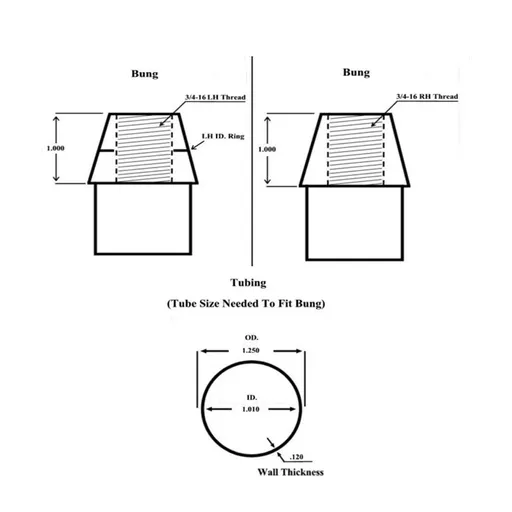

    Bung (WIB 3/4-16 LH .120 & WIB 3/4-16 RH.120)

    • Material: Carbon Steel
    • Qty: Four RH & Four LH (Left Mark With Groove)
    • Thread Size: 3/4"-16
    • Bung Size: 1" 1/4 OD. x .120" Wall x 1.01" ID.

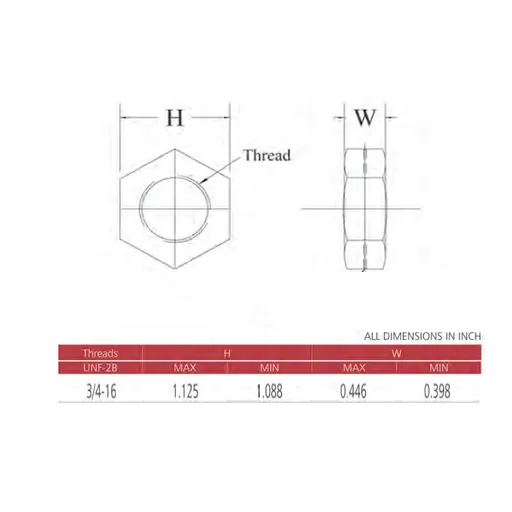

    Jam Nut (JNL12S & JNR12S)

    • Qty: Four RH & Four LH
    • Thread: 3/4"-16
    • Width: 1 1/8" (1.125")
    • Height: 27/64"(0.422")
    • Carbon Steel, Zinc Plated

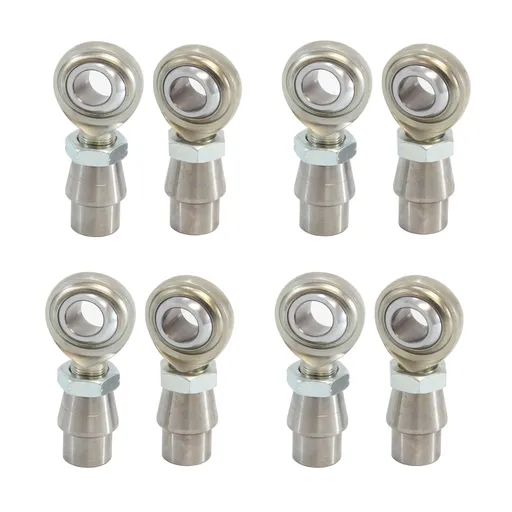

    Package Includes:

    • 4 x RH 3/4"-16 Jam Nut
    • 4 x LH 3/4"-16 Jam Nut
    • 4 x RH 3/4"-16 Thread, 3/4" Bore
    • 4 x LH 3/4"-16 Thread, 3/4" Bore
    • 4 x RH Weld-In Bung
    • 4 x LH Weld-In Bung
